Jewell Instruments LSM Series Accelerometer ±2g
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Input Range |
|---|---|---|---|
$1,96300
|
In stock
|
LSMP-0.5g
|
Input Range:
|
|
$1,96300
|
In stock
|
LSMP-10g
|
Input Range:
|
|
$1,96300
|
In stock
|
LSMP-1g
|
Input Range:
|
|
$1,96300
|
In stock
|
LSMP-20g
|
Input Range:
|
|
$1,96300
|
In stock
|
LSMP-2g
|
Input Range:
|
|
$1,96300
|
In stock
|
LSMP-5g
|
Input Range:
|
Features
- ±0.5g to ±20g full range
- Filtering up to 200 Hz bandwidth w/0.6 damping
- Satellite application reliability
- Greater than 20 µg Res @ 10g Full Scale
- Small size approximately 1 inch cube
- Full Range Output (±1%) ±5.0V
- Operating temp: -67 to 203°F (-55 to 95°C)

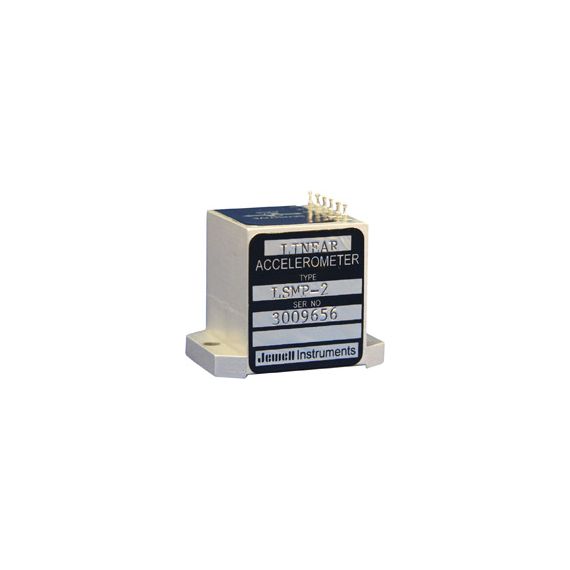

The Jewell Instruments LSM Series Accelerometer offers equivalent features to the LCA in a smaller package — approximately 1 inch cube. Its wide input range and bandwidth features meet the demanding needs of variety of aerospace applications.
The LS Series of linear accelerometers are solid-state, DC, closed-loop, force-balanced accelerometers with accuracy, stability and reliability several orders of magnitude greater than open-loop types. They are ideally suited to the precise requirements of inertial guidance and control systems. Linear acceleration applied and acting on unbalanced mass will develop a torque. By arranging the mass so that any resultant motion develops an electrical signal which his properly amplified and supplied to an electrical torque generator acting on the mass, equilibrium is produced between the two torquers.
Applications for the LSM Series include:
- Satellite nutrition sensing
- Radar leveling
- Fire control
- Attitude heading and reference systems
- Train braking and banking
- Missile orientation
- Autopilot
