Home/Accelerometers/Wilcoxon Sensing Technologies 712F High Frequency Integral Cable Accelerometer M4 captive screw with 0.047in diameter safety wire hole

Wilcoxon Sensing Technologies 712F High Frequency Integral Cable Accelerometer M4 captive screw with 0.047in diameter safety wire hole

CODE:

Write a review

$1,568⁰⁰

In stock

Mounting Thread:

+ −

Delivery

Payment options

Our advantages

— 12 months warranty
— SMS notification
— Return and exchange
— Different payment methods
— Best price

Options
Description
Documents

Column filling

Sort by Price	Sort by Availability	Sort by CODE	Sort by Mounting Thread
$1,568⁰⁰	In stock + −	712F	Mounting Thread: 8-32 captive screw with 0.047in diameter safety wire hole
$1,568⁰⁰	In stock + −	712F-M4	Mounting Thread: M4 captive screw with 0.047in diameter safety wire hole

Features

Dynamic vibration (IEPE) sensor output
100 mV/g sensitivity
±10% sensitivity tolerance
60g peak acceleration range
Frequency response:
- ±5%: 9 to 15,000Hz
- ±10%: 6 to 20,000Hz
- ±3 dB: 3 to 25,000Hz
>45kHz resonance frequency
100Ω max output impedance
±1,000g vibration limit
5,000g peak shock limit
8-32 or M4 captive screw with 0.047" diameter safety wire hole

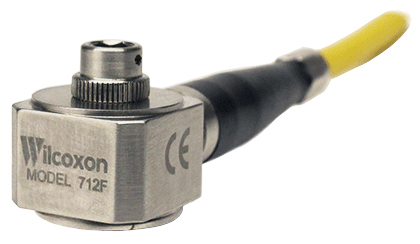

The Wilcoxon Sensing Technologies 712F high frequency integral cable accelerometer is designed for long-term, reliable use. It is corrosion-resistant, hermetically sealed, ground isolated, and constructed with 316L stainless steel.

The 712F offers two possible connector options. The 712F model has a 8-32 captive screw, and the 712F-M4 model has a M4 captive screw. Both models have a 0.047-inch diameter safety wire hole for mounting and J9T2AK, 16-foot, blunt cut integral cabling.
