Wilcoxon Sensing Technologies 731 Series Compact Seismic Accelerometer 10-32 UNF connector for mounting, 10-32 coaxial output connector Not available with accelerometer selection

CODE:

Write a review

$2,175⁹⁹

In stock

Accelerometer Model:

System:

+ −

Delivery

Payment options

Our advantages

— 12 months warranty
— SMS notification
— Return and exchange
— Different payment methods
— Best price

Options
Description
Documents

Column filling

Sort by Price	Sort by Availability	Sort by CODE	Sort by Accelerometer Model	Sort by System
$2,175⁹⁹	In stock + −	731-207	Accelerometer Model: 10-32 UNF connector for mounting, 10-32 coaxial output connector	System: None
$3,887⁹⁹	In stock + −	731-207/P31	Accelerometer Model: 10-32 UNF connector for mounting, 10-32 coaxial output connector	System: 731A accelerometer and power amplifier system with selectable sensitivity, includes sensor-power supply cable
$2,175⁹⁹	In stock + −	731-207	Accelerometer Model: 10-32 UNF connector for mounting, 10-32 coaxial output connector	System: Not available with accelerometer selection
$2,848⁰⁰	In stock + −	731A	Accelerometer Model: 3/8-16 tapped hole for mounting, 2 pin, MIL-C-5015 style output connector	System: None
$4,560⁰⁰	In stock + −	731A/P31	Accelerometer Model: 3/8-16 tapped hole for mounting, 2 pin, MIL-C-5015 style output connector	System: 731A accelerometer and power amplifier system with selectable sensitivity, includes sensor-power supply cable
$2,848⁰⁰	In stock + −	731A	Accelerometer Model: 3/8-16 tapped hole for mounting, 2 pin, MIL-C-5015 style output connector	System: Not available with accelerometer selection

Features

Sensitivity:
- 731-207, 731A: 10V/g
- 731A/P31 system: 10, 100, 100V/g selectable
0.5g peak acceleration range
Frequency response:
- 731-207:
  - ±5%: 0.6 to 650Hz
  - ±10%: 0.5 to 850Hz
  - ±3 dB: 0.2 to 1,300Hz
- 731A:
  - ±10%: 0.1 to 300Hz
  - ±3 dB: 0.05 to 450Hz
- 731A/P31 system:
  - 100Hz:
    - -10%: 0.08 to 70Hz
    - -3 dB: 0.05 to 100Hz
  - 450Hz:
    - -10%: 0.08 to 300Hz
    - -3 dB: 0.05 to 450Hz
  - velocity:
    - -3 dB: 0.8 to 150Hz
Vibration limit:
- 731-207: 50g peak
- 731A, 731A/P31 system: fragile
Output connector:
- 731-207: 10-32 coaxial
- 731A: MIL-C-5015, 2-pin
- 731A/P31: MIL-C-5015, 2-pin and BNC

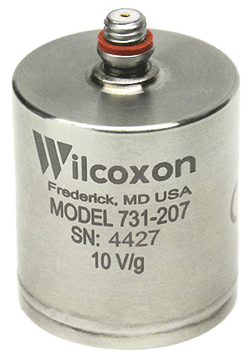

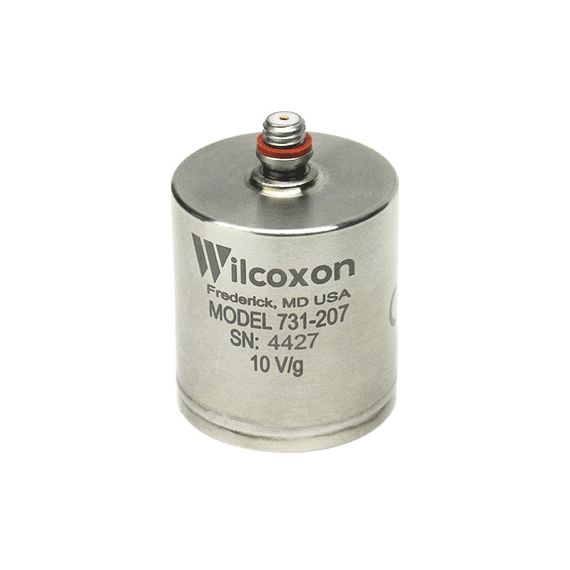

The Wilcoxon Sensing Technologies 731 series compact seismic accelerometer is designed for long-term, reliable use. It is constructed with 316L stainless steel. The 731-207 features a 10-32 UNF tapped hole for mounting with SF1 stud (included) and a 10-32 coaxial output connector.

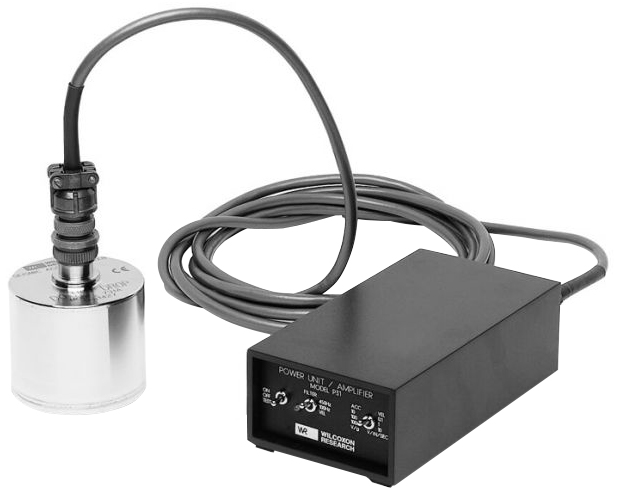

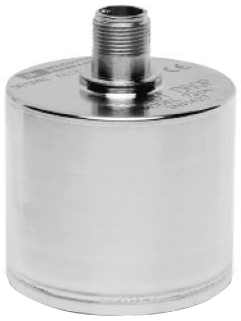

The 731A and 731A/P31 system feature a 2-pin, MIL-C-5015 output connector and include a SF7 mounting stud. Both accelerometer styles are hermetically sealed and manufactured in an ISO 9001 facility.

Wilcoxon-731-207-datasheet (Wilcoxon-731-207-datasheet.pdf, 269 Kb) [Download]

Wilcoxon-731A-datasheet (Wilcoxon-731A-datasheet.pdf, 252 Kb) [Download]

Wilcoxon-731A-P31-datasheet (Wilcoxon-731A-P31-datasheet.pdf, 349 Kb) [Download]
