Features
- Dynamic vibration (IEPE) sensor output
- 100mV/g sensitivity
- ±10% sensitivity tolerance
- 1 to 12,000Hz frequency response
- 1/4-28 captive hex head screw with 0.046" diameter safety wire hole
- MIL-C-5015, 2-pin output connector
- R6 type mating connector
- 80g peak FS range
- 30kHz resonance frequency
- Reverse wiring protection
- 316L stainless steel construction
- SF6 mounting stud included

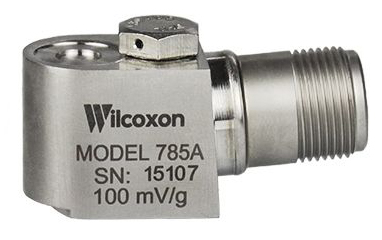

The Wilcoxon Sensing Technologies 785A compact industrial accelerometer is designed for long-term, reliable use. It is constructed with 316L stainless steel, and is hermetically sealed and corrosion-resistant. It features a 1/4-28 captive hex head screw with 0.046" diameter safety wire hole (included) for mounting, and has a MIL-C-5015 2-pin output connector. The 785A is case isolated, and has 100mV/g sensitivity and ±10% sensitivity tolerance.
The 785A is manufactured in an ISO 9001 facility.
