Wilcoxon Sensing Technologies 786LF Series Ultra Low Frequency Accelerometer M12 connector, 500mV/g sensitivity
786LF-500-M12
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Column filling
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Model |
|---|---|---|---|
$1,28001
|
In stock
|
786LF-M12
|
Model:
|
|
$1,28001
|
In stock
|
786LF-250-M12
|
Model:
|
|
$1,28001
|
In stock
|
786LF-500-M12
|
Model:
|
|
$1,28001
|
In stock
|
786LF
|
Model:
|
|
$1,28001
|
In stock
|
786LF-250
|
Model:
|
|
$1,28001
|
In stock
|
786LF-500
|
Model:
|
Features
- Sensitivity:
- 786LF: 100mV/g
- 786LF-250: 250mV/g
- 786LF-500: 500mV/g
- Peak acceleration range:
- 786LF: 50g peak
- 786LF-250: 20g peak
- 786LF-500: 10g peak
- Frequency response:
- ±5%: 0.35 to 5,000Hz
- ±10%: 0.25 to 8,000Hz
- ±3 dB: 0.1 to 13,000Hz
- 30kHz resonance frequency
- Max output impedance:
- 786LF: 100Ω
- 786LF-250: 200Ω
- 786LF-500: 300Ω
- 500g peak vibration limit
- 5,000g peak shock limit
- Hermetic sealing
- PZT ceramic / shear sensing element
- Output connector:
- 786LF, 786LF-250, 786LF-500: 2 pin, MIL-C-5015
- 786LF-M12, 786LF-250-M12, 786LF-500-M12: M12 style

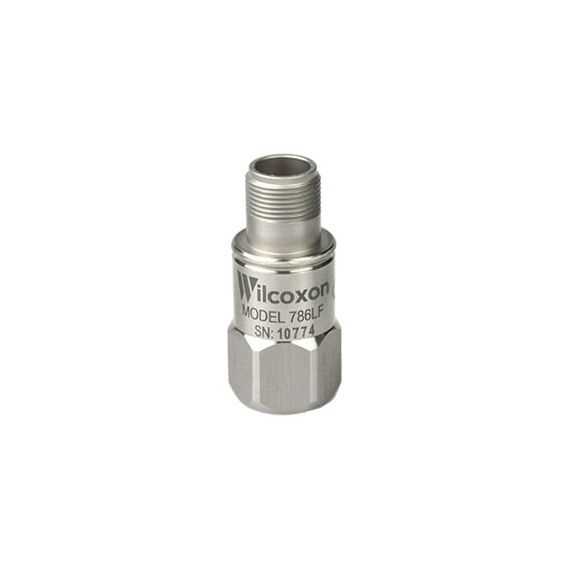

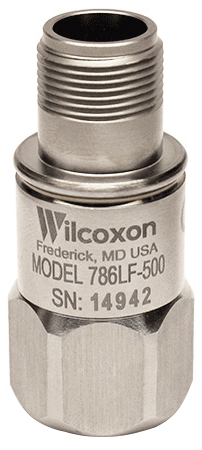

The Wilcoxon Sensing Technologies 786LF series ultra low frequency accelerometer is designed for long-term, reliable use. It features extended low frequency response and high sensitivity, and it delivers clear signals at low vibrations.
The 786LF is constructed with 316L stainless steel and features a 1/4-28 UNF tapped hole for mounting, a SF6 mounting stud (included) and either a MIL-C-5015 2-pin or M12 connector. The 786LF is manufactured in an ISO 9001 facility.
