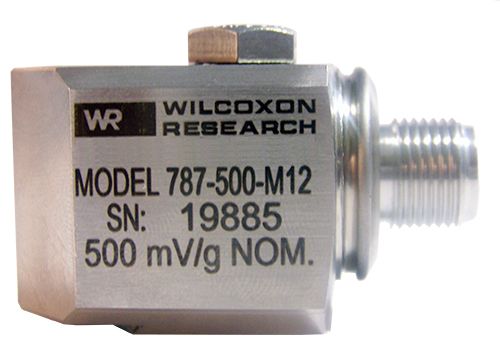

Wilcoxon Sensing Technologies 787-500 Series Accelerometer General purpose, M12 4-pin connector
787-500-M12
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Column filling
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Model |
|---|---|---|---|
$1,29600
|
In stock
|
787-500-IS
|
Model:
|
|
$1,24800
|
In stock
|
787-500-M12-IS
|
Model:
|
|
$1,29600
|
In stock
|
787-500-D2
|
Model:
|
|
$1,28001
|
In stock
|
787-500-M12-D2
|
Model:
|
|
$1,12000
|
In stock
|
787-500
|
Model:
|
|
$1,12000
|
In stock
|
787-500-M12
|
Model:
|
Features
- 10g peak acceleration range
- 500g peak vibration limit
- 5,000g peak shock limit
- Frequency response:
- ±10%: 0.5 to 5,000Hz
- ±3 dB: 0.2 to 10,000Hz
- 22kHz resonance frequency
- 100Ω max output impedance
- Hermetic sealing
- PZT ceramic / shear sensing element
- Connector:
- 787-500, 787-500-D2, 787-500-IS: MIL-C-5015, 2-pin
- 787-500-M12, 787-500-M12-D2, 787-500-M12-IS: M12 style, 4-pin

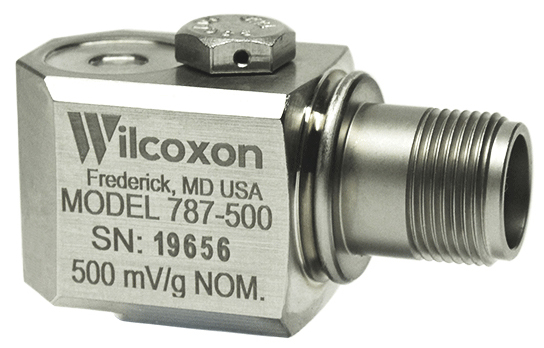

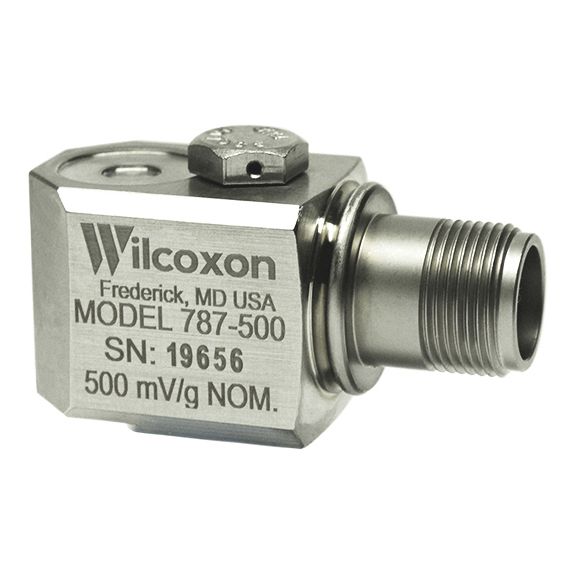

The Wilcoxon Sensing Technologies 787-500 series accelerometer is designed for long-term, reliable use. It is constructed with 316L stainless steel, and features extended low frequency response, clear signals at low vibration levels, and improved signal to noise ratio.
The 787-500 has a 500mV/g, ±5% sensitivity tolerance, and is case isolated and internally shielded. The 787-500 basic models feature a 1/4-28 captive hex head screw with 0.046" diameter safety wire hole and a MIL-C-5015 2-pin connector. M12 models feature a M6 captive screw and a M12 4-pin connector.
The 787-500 is manufactured in an ISO 9001 facility.
