Features
- Dynamic vibration (IEPE) sensor output
- 80g peak acceleration range
- 1% amplitude nonlinearity
- Frequency response:
- ±5%: 1.5 to 5,000Hz
- ±10%: 1 to 7,000Hz
- ±3 dB: 0.5 to 15,000Hz
- 25kHz resonance frequency
- 100Ω max output impedance
- 500g peak vibration limit
- 5,000g peak shock limit
- Hermetic sealing
- PZT ceramic / shear sensing element
- MIL-C-5015 2-pin connector

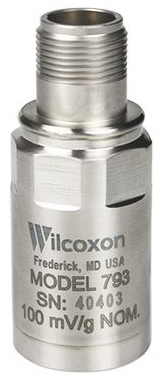

The Wilcoxon Sensing Technologies 793 general purpose accelerometer is designed for long-term, reliable use. It is constructed with 316L stainless steel, and is hermetically sealed. It has a MIL-C-5015 style 2-pin output connector, a 1/4-28 tapped hole for mounting, and a R6 type connector. The 793 is case isolated, and has 100mV/g sensitivity and ±5% sensitivity tolerance.
The 793 accelerometer is manufactured in an ISO 9001 facility.
