Features
- Dynamic vibration (IEPE) sensor output
- 80g peak acceleration range
- 1% amplitude nonlinearity
- Frequency response:
- ±5%: 3 to 5,000Hz
- ±10%: 2 to 7,000Hz
- ±3 dB: 1 to 12,000Hz
- 26kHz resonance frequency
- 100Ω max output impedance
- 500g peak vibration limit
- 5,000g peak shock limit
- Hermetic sealing
- PZT ceramic / shear sensing element
- MIL-C-5015 2-pin connector

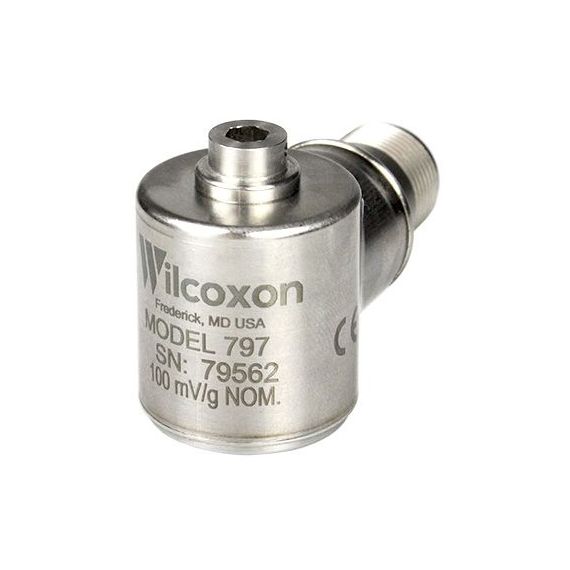

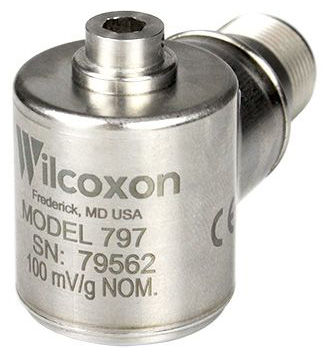

The Wilcoxon Sensing Technologies 797 high performance accelerometer is designed for long-term, reliable use. It is constructed with 316L stainless steel, and is hermetically sealed. It features a 1/4-28 captive socket head with 0.062" diameter safety wire hole for mounting, and has a MIL-C-5015 2-pin output connector. The 797 is case isolated, and has 100mV/g sensitivity and ±5% sensitivity tolerance.
The 797 accelerometer is manufactured in an ISO 9001 facility.
