Features
- Dynamic vibration (IEPE) sensor output
- 10g peak acceleration range
- 1% amplitude nonlinearity
- Frequency response:
- ±5%: 0.6 to 850Hz
- ±10%: 0.4 to 1,500Hz
- ±3 dB: 0.2 to 3,700Hz
- 18kHz resonance frequency
- 100Ω max output impedance
- 250g peak vibration limit
- 2,500g peak shock limit
- Hermetic sealing
- PZT ceramic / shear sensing element
- R6 type mating connector

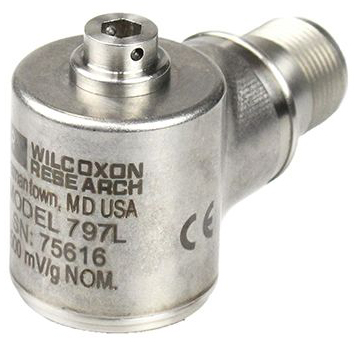

The Wilcoxon Sensing Technologies 797L low frequency accelerometer is designed for long-term, reliable use. It is constructed with 316L stainless steel, is hermetically sealed, and features ultra low noise electronics. It also features a 1/4-28 captive socket head with 0.062" diameter safety wire hole for mounting, and has a R6 type output connector. The 797L is case isolated, and has 500mV/g sensitivity and ±5% sensitivity tolerance.
The 797L accelerometer is manufactured in an ISO 9001 facility.
