Wilcoxon Sensing Technologies 797V High Performance Velocity Sensor
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Dynamic vibration (IEPE) sensor output
- ESD protection
- 50 in/sec peak velocity range
- 1% amplitude nonlinearity
- Frequency response:
- ±10%: 2 to 3,500Hz
- ±3 dB: 1.6 to 7,000Hz
- 18kHz resonance frequency
- Greater of 5,000/f or 200Ω output impedance
- 250g peak vibration limit
- 2,500g peak shock limit
- Hermetic sealing
- PZT ceramic / shear sensing element
- MIL-C-5015 2-pin output connector
- R6 type mating connector

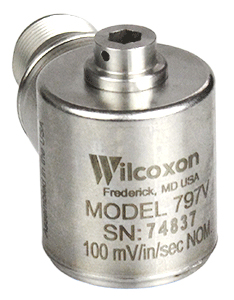

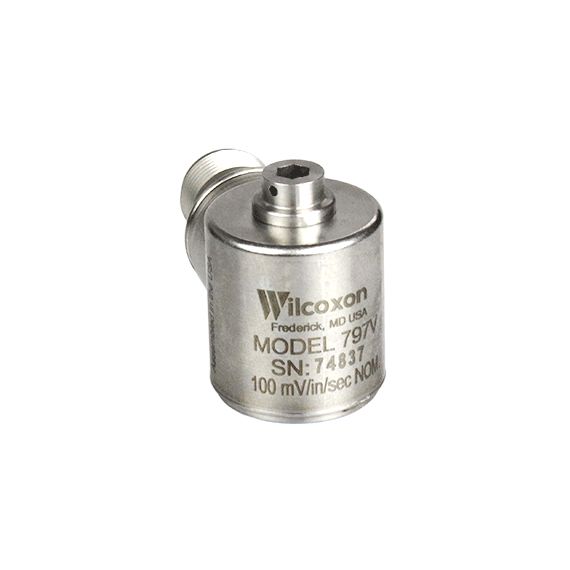

The Wilcoxon Sensing Technologies 797V high performance velocity sensor is designed for long-term, reliable use. It is constructed with 316L stainless steel, and is hermetically sealed. It features a 1/4-28 captive socket head with 0.062" diameter safety wire hole for mounting, and has a MIL-C-5015 2-pin output connector and a R6 type mating connector. The 797V is case isolated, and has 100 mV/in/sec sensitivity and ±10% sensitivity tolerance.
The 797V accelerometer is manufactured in an ISO 9001 facility.
