Wilcoxon Sensing Technologies 993B-7 Triaxial Accelerometer
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Hazardous Area Certification |
|---|---|---|---|
$5,37599
|
In stock
|
993B-7
|
Hazardous Area Certification:
|
|
$5,35999
|
In stock
|
993B-7-33
|
Hazardous Area Certification:
|
Features
- 100 mV/g sensitivity
- ±10% sensitivity tolerance
- 40g peak acceleration range
- 1% amplitude nonlinearity
- Frequency response:
- Z axis, ±3 dB: 2 to 10,000Hz
- X and Y axes, ±3 dB: 2 to 7,000Hz
- 400Ω max output impedance
- 500g peak vibration limit
- 5,000g peak shock limit
- Hermetic sealing
- Integral cable, 16ft Teflon J9T4B, armored
- Stripped and tinned cable termination
- 10-32 captive screw
- Intrinsically safe (optional)

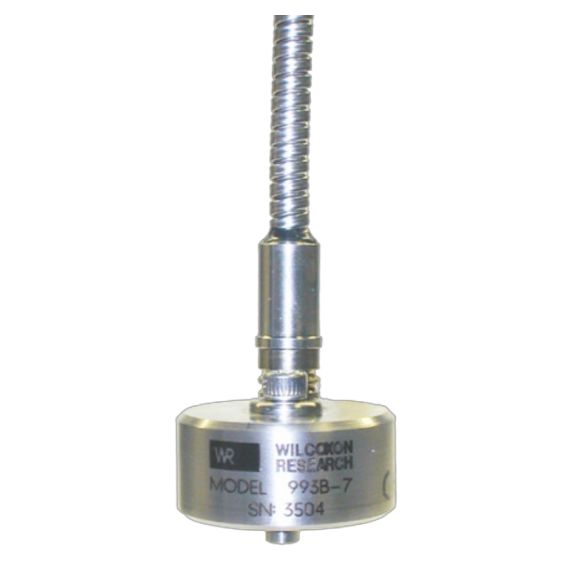

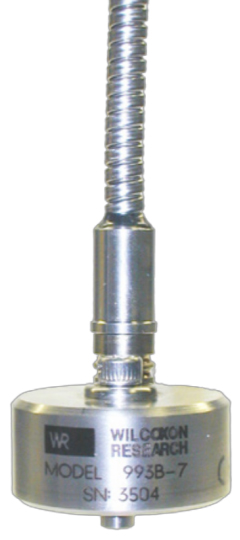

The Wilcoxon Sensing Technologies 993B-7 triaxial accelerometer features a 16-foot armored Teflon integral cable to blunt cut and a stripped and tinned cable termination. It includes a 10-32 captive screw for mounting. The 993B-7 is designed for long-term, reliable use with a 316L stainless steel case. It is case isolated, internally shielded, and hermetically sealed. It features EMI/RFI protection and is manufactured in an ISO 9001 facility.
Wilcoxon's triaxial accelerometers comprise three sensing elements within a single housing. Triaxial accelerometers enable multi-directional data acquisition in a single measurement. Proponents of 3-axis accelerometers cite the increased speed of data collection, inherently consistent readings, and a reduction in wiring for permanent installations.
