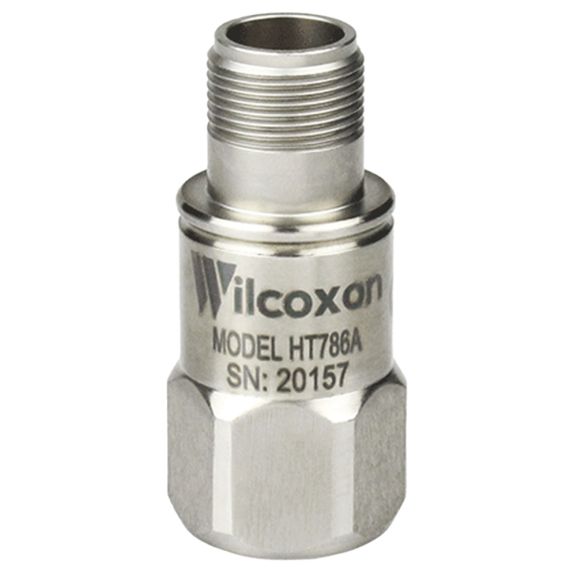

Wilcoxon Sensing Technologies HT786A Accelerometer
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- 80g peak acceleration range
- 500g peak vibration limit
- 5,000g peak shock limit
- Frequency response:
- ±5%: 3 to 5,000Hz
- ±10%: 1 to 9,000Hz
- ±3 dB: 0.5 to 14,000Hz
- 30kHz resonance frequency
- 100Ω max output impedance
- PZT shear sensing element
- Hermetic sealing
- MIL-C-5015 connector
The Wilcoxon Sensing Technologies HT786A accelerometer is a high temperature rated sensor that is built with extended range components for long-lasting operation. It is constructed with 316L stainless steel and features a 1/4-28 UNF tapped hole for mounting with SF6 stud (included), and has a MIL-C-5015 2-pin connector. The HT786A is case isolated, and has a 100mV/g, ±5% sensitivity tolerance.
The HT786A is API 670 compliant and is manufactured in ISO 9001 facility.
