Features
- 80g peak acceleration range
- 500g peak vibration limit
- 5,000g peak shock limit
- Frequency response:
- ±10%: 1 to 5,000Hz
- ±3 dB: 0.5 to 10,000Hz
- 22kHz resonance frequency
- Power requirements:
- Voltage source: 18 - 30VDC
- Current regulating diode: 2 - 10mA
- 100Ω max output impedance
- Hermetic sealing
- MIL-C-5015 connector
- PZT ceramic / shear sensing element

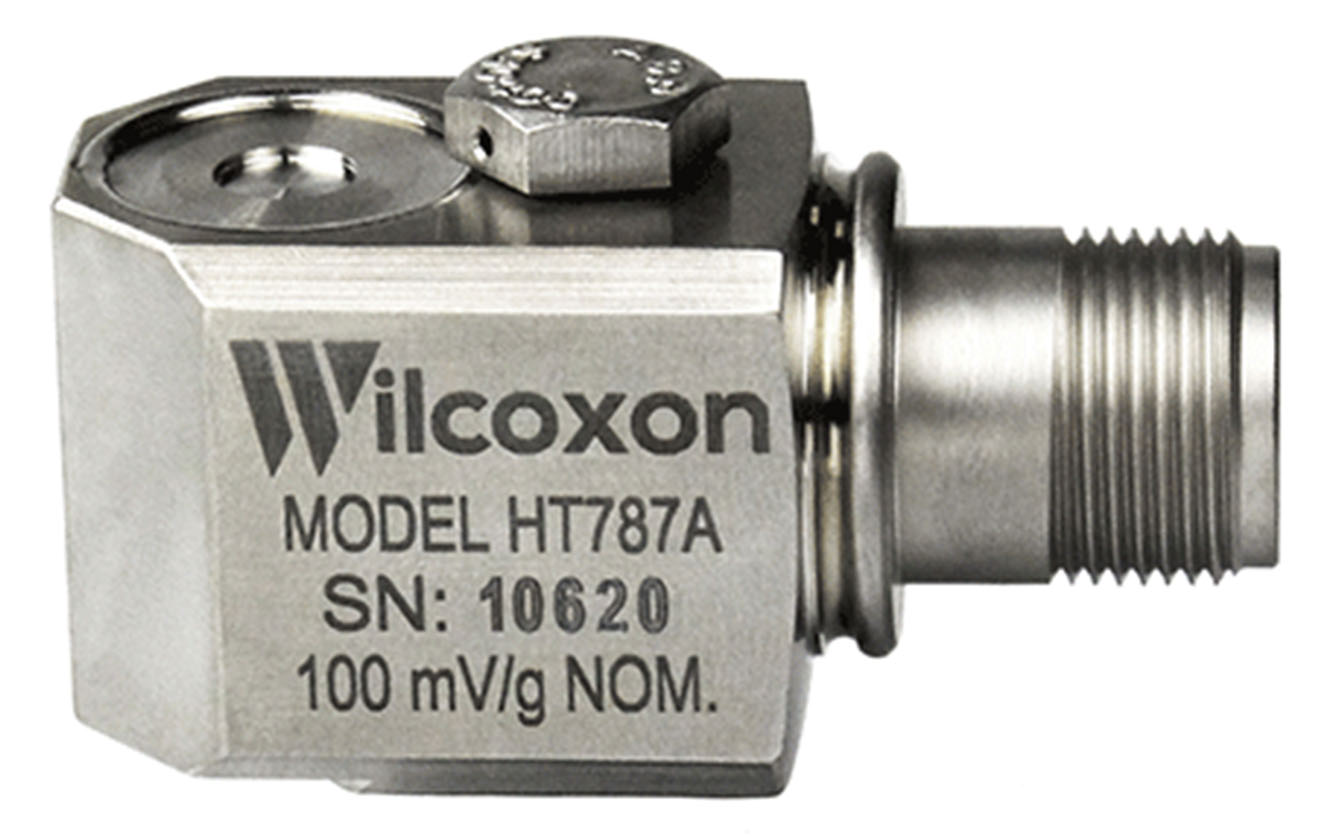

The Wilcoxon Sensing Technologies HT787A accelerometer is suitable for a wide range of industrial applications and is constructed with 316L stainless steel. The HT787A's rugged, hermetically sealed design has a 1/4-28 captive hex head screw with a 0.046in diameter safety wire hole for mounting and a 2 pin MIL-C-2015 style connector. The HT787A is case isolated and features ESD, overload, and reverse wiring protection.
The HT787A is API 670 compliant and is manufactured in an ISO 9001 facility.
