Fluke 500 Series Battery Analyzers BT510: 600VDC
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Model |
|---|---|---|---|
$14,66397
|
In stock
|
FLUKE-BT510
|
Model:
|
|
$15,62597
|
In stock
|
FLUKE-BT520
|
Model:
|
|
$16,79597
|
In stock
|
FLUKE-BT521
|
Model:
|
Features
- Up to 3000mΩ resistance
- Up to 1000VDC (BT521)
- Up to 600VDC (BT510 & BT520)
- 600VAC (45 to 500Hz with 800Hz filter)
- 500Hz frequency measurement
- Up to 6000mV AC voltage ripple test (20KHz max)
- Comprehensive logging, AutoHold, & AutoSave
- Users can configure a maximum of 10 sets of thresholds
- Receive Pass/Warning/Fail indications
- 7.4V 3000mAh li-ion battery (8hr continuous operation)
- CAT III 600V, 1000V max safety rated
- 3-year warranty

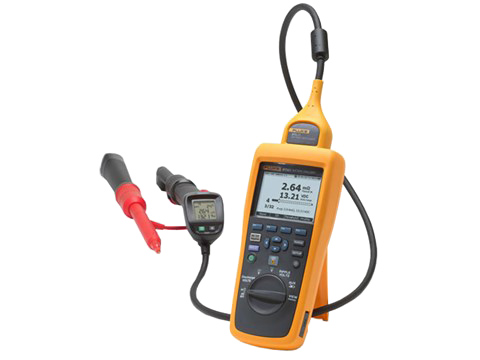

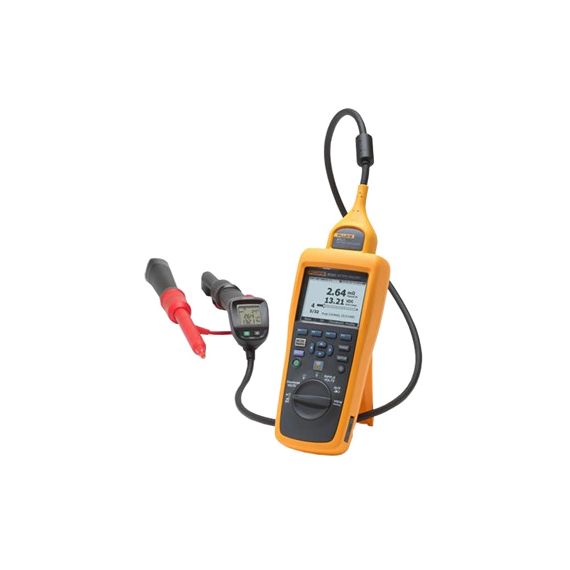

The Fluke 500 series battery analyzers cover a broad range of battery test functions ranging from DC voltage and resistance tests to full condition testing. They are designed for measurements on stationary batteries of all types. Intuitive user interface, compact design, and rugged construction ensure optimum performance and reliability.
All measured values are automatically captured during testing and can be reviewed on the instrument before downloading. Meter mode takes 999 records for each measurement position with time stamp. Sequence mode provides up to 100 profiles and 100 profile templates with time stamp (each profile stores up to 450 batteries).
The Discharge mode collects the voltage of each battery multiple times at a user defined interval during a discharge or load test. Users can calculate the time a battery takes to drop to the cut-off voltage and use this time to determine the capacity loss of the battery.
