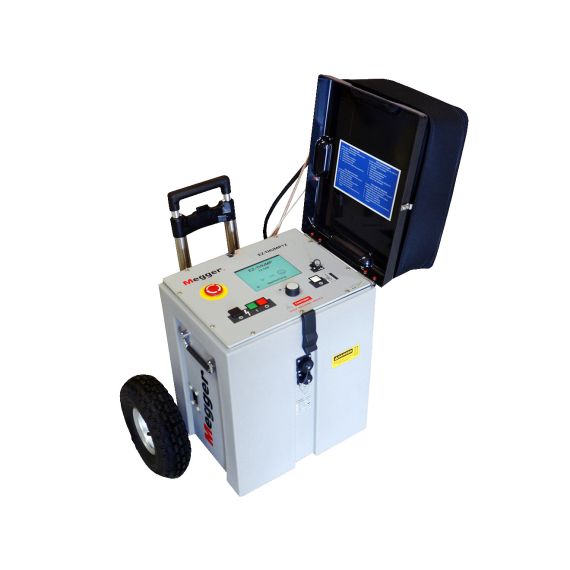

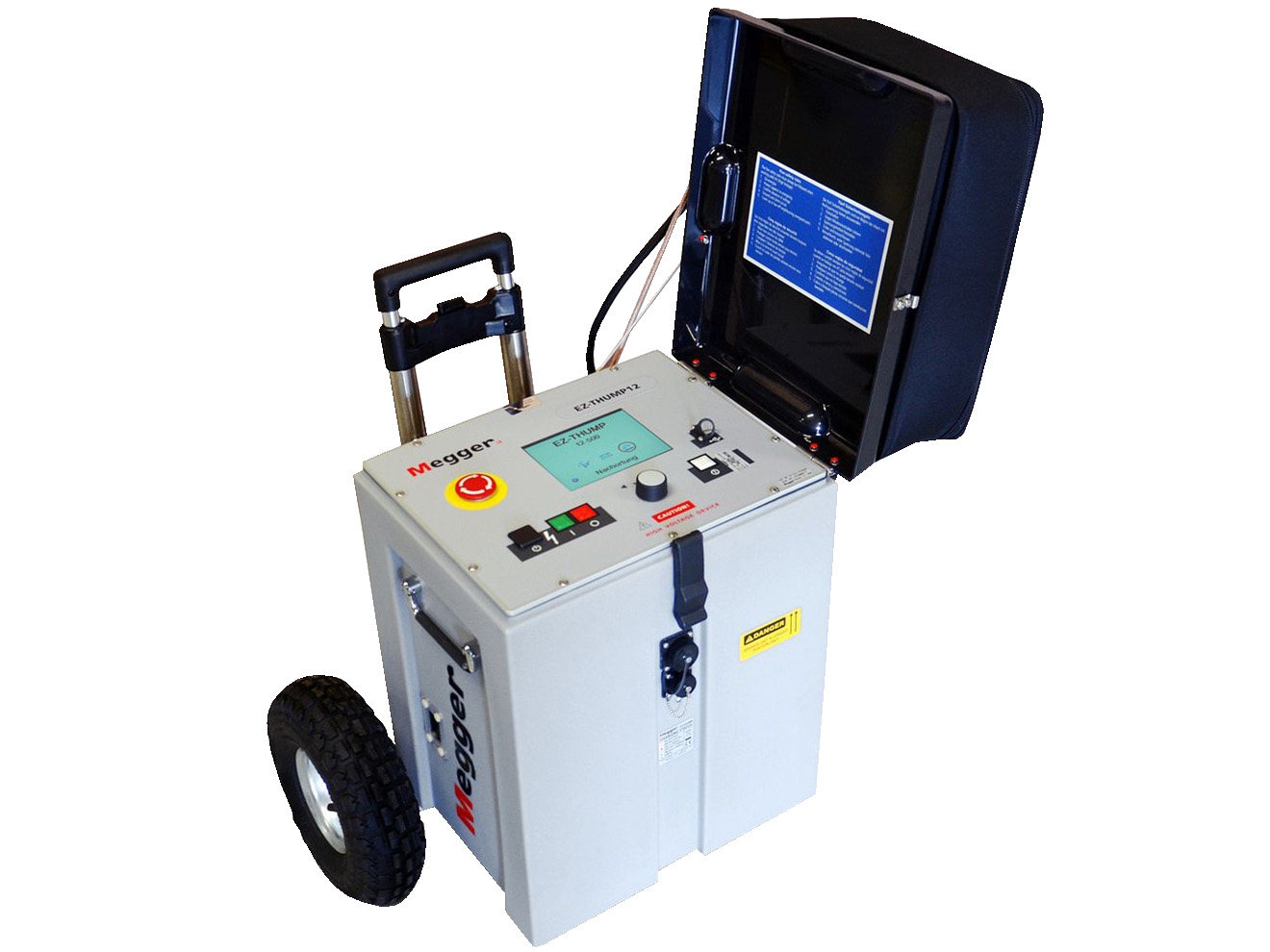

Megger EZ-Thump 4kV Portable Cable Fault Location System
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Testing Output: 0 – 1.5/0 - 3 kV, 94/47 mA DC; 0 – 4 kV, 35 mA DC
- Prelocation Range: TDR
- phase-to-neutral, phase-to-phase up to 256 pairs
- Range 25,000ft
- Power Supply:
- Internal 24 V NiMH battery (30-60 mins surge)
- 3 hours recharge, AC: 100-230 VAC
- Safety Features:
- Emergency stop
- Key-switch interlock
- F-OHM grounding detection
- Environmental:
- Operating temp: 4 to 122°F
- Storage temp: -12 to 160°F
- Pinpoint Fault Location: 0 - 1.5/3.0kV @ 500J; 0 - 4 kV @ 500J
- Memory: 1000 traces, USB interface
- Cables Supplied: 15ft HV flexible shielded cable, 15ft safety ground cable
The Megger EZ-Thump 4kV Portable Cable Fault Location System is an advanced tool designed to locate faults in shielded and unshielded low voltage cables. The EZ-Thump 4kV feature a single-stage 500 J surge (4 kV model) for pinpointing high resistance faults. The unit battery and AC line operation are portable, lightweight, and weather-resistant, making them ideal for outdoor use in industrial, streetlight, and utility applications. The EZ-Thump 4kV systems combine advanced technologies, such as Time Domain Reflectometry (TDR) and Arc Reflection Method (ARM®), to effectively locate faults with up to 7.6 km of range.
This product is equipped with a 5.7-inch HiBrite TFT LCD display, the systems provide clear, easy-to-read results even in bright outdoor conditions. The EZ-Thump 4kV user-friendly interface includes an emergency stop function, key-switch interlock, and the ability to operate both via a rotary control knob and the simple E-Tray GUI. The unit has a memory for storing 1000 traces, users can quickly access past results. The EZ-Thump 4kV units are ideal for both fault prelocation and pinpointing, making them a reliable choice for cable fault detection and diagnostics.
EZ-Thump 4 kV Applications
- Industrial cable fault location
- Streetlight fault detection
- LV power circuit fault detection in utilities
- Insulation resistance and sheath testing
- Breakdown voltage testing
