Druck PV620-IS Pressure Station MC620-IS: pressure module carrier
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Model |
|---|---|---|---|
$1,48590
|
In stock
|
MC620-IS
|
Model:
|
$4,34720
|
In stock
|
PV621-IS
|
Model:
|
|
$6,40120
|
In stock
|
PV622-IS
|
Model:
|
|
$8,59820
|
In stock
|
PV623-IS
|
Model:
|
Features
- Pressure measurement and generation
- Pneumatic or hydraulic
- For pressures from vacuum up to 15,000psi
- Compatible with PM620-IS pressure modules and DPI620-IS multifunction calibrator
- Standalone replacement for hand pumps
- Bench-top use as comparators
- Dual channel measurement available (MC620-IS)
- ATEX and IEC approved Intrinsically Safe

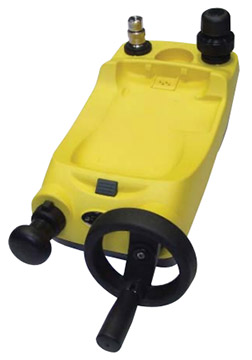

The Druck intrinsically safe pressure stations consist of either the PV620-IS pressure generator or the MC620-IS pressure module carrier. Druck pressure stations work in conjunction with DPI620-IS intrinsically safe multifunction calibrator and PM620-IS pressure modules to form the Druck AMC Advanced Modular Calibration System.
The Druck PV620 pressure station is available in three models:
- The PV621-IS is a pneumatic pressure generator for pressures vacuum to 300 psi.
- The PV622-IS is a pneumatic pressure generator for pressures vacuum to 1500 psi.
- The PV623-IS is a hydraulic pressure generator for pressures up to 15,000 psi.
All models are ATEX and IEC approved Intrinsically Safe for stand-alone use in hazardous areas.

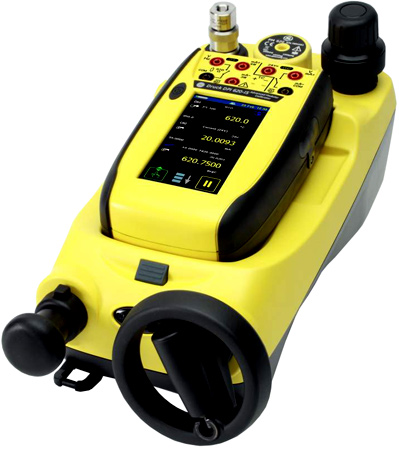

Each Druck pressure station is designed for stand-alone operation as a pressure generator and can replace conventional hand pumps to provide greater efficiency and ease of use. Druck pressure stations can also be used on the workbench as a comparators. Combining any of the pressure stations with a PM620-IS pressure module and the DPI620 calibrator creates a uniquely capable, self-contained pressure calibrator.
The Druck MC620-IS pressure module carrier can be used in place of the Druck PV620-IS pressure station. The MXC620-IS can be combined with pressure modules and the DPI620 to add dual channel pressure measurement capability that can be re-ranged in seconds.
