Druck PV620G Pressure Station MC620G: pressure module carrier
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Model |
|---|---|---|---|
$1,14140
|
In stock
|
MC620G
|
Model:
|
|
$3,48530
|
In stock
|
PV621G
|
Model:
|
|
$5,11290
|
In stock
|
PV622G
|
Model:
|
|
$6,86270
|
In stock
|
PV623G
|
Model:
|
Features
- Pressure measurement and generation
- Pneumatic or hydraulic
- For pressures from vacuum up to 15,000psi
- Compatible with PM620 pressure modules and DPI620 Genii multifunction calibrator
- Standalone replacement for hand pumps
- Bench-top use as comparators
- Dual channel measurement available (MC620)

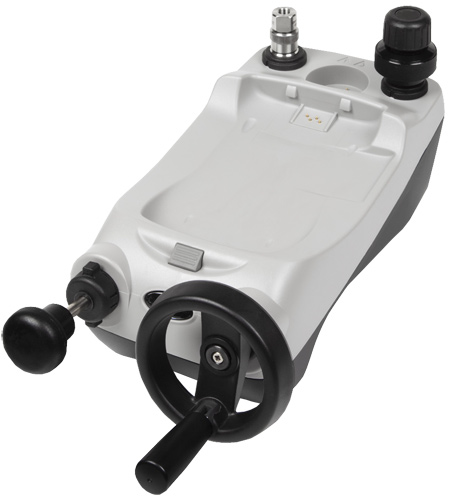

The Druck pressure stations consist of either the PV620G pressure generator or the MC620G pressure module carrier. Druck pressure stations work in conjunction with DPI620 Genii multifunction calibrator and PM620 pressure modules to form the Druck AMC Advanced Modular Calibration System.
The Druck PV620G pressure station is available in three models:
- The PV621G is a pneumatic pressure generator for pressures vacuum to 300 psi
- The PV622G is a pneumatic pressure generator for pressures vacuum to 1500 psi
- The PV623G is a hydraulic pressure generator for pressures up to 15,000 psi

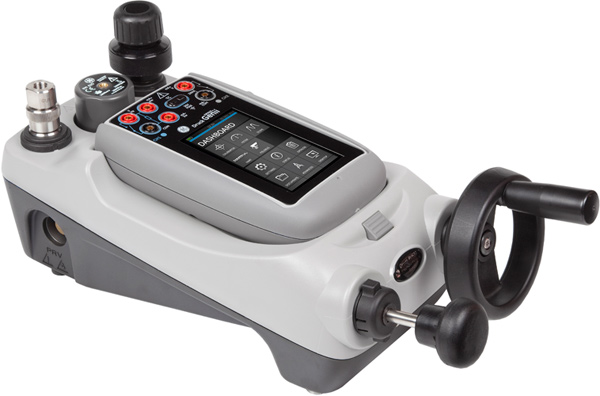

Each Druck pressure station is designed for stand-alone operation as a pressure generator and can replace conventional hand pumps to provide greater efficiency and ease of use. Druck pressure stations can also be used on the workbench as a comparators. Combining any of the pressure stations with a PM620 pressure module and the DPI620 Genii calibrator creates a uniquely capable, self-contained pressure calibrator.
The Druck MC620G pressure module carrier can be used in place of the Druck PV620 pressure station. The MC620G can be combined with pressure modules and the DPI620 to add dual channel pressure measurement capability that can be re-ranged in seconds.
