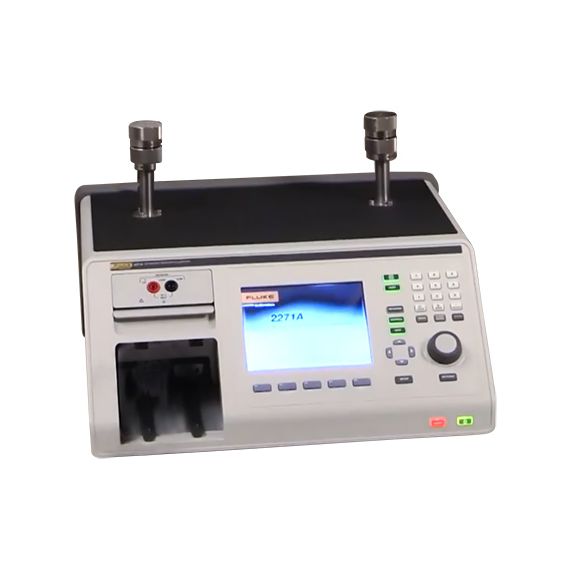

Fluke Calibration 2271A Industrial Pressure Calibrator
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- -15psi to 3000psi measuring range
- Up to 0.02% FS accuracy
- 24VDC loop power
- Measures 0 to 30VDC & 4 to 20mA
- 2 vertical test ports
- HC20 test port type
- Easy grip features
- Support for M20 connections
- HART capabilities
- RS-232 connector
- Optional contamination prevention system
- Choice of ten languages
- IEC 60529: IP20
- IEC 61010-1, Installation Category II, Pollution degree 2
- PM200 pressure measurement modules sold separately
The Fluke Calibration 2271A industrial pressure calibrator is an automated solution for calibrating and testing a variety of pressure gauges, transmitters, switches, and sensors. It delivers a wide range of pressure measurement capabilities and is easily expanded to meet the demands of a broad workload.
The 2271A uses PM200 pressure measurement modules with silicon sensors for superior accuracy. Each module has been leak tested to pressures three times higher than the maximum working pressure to ensure that a leak in the system will not affect the measurement and control of pressure. Up to two modules with differing ranges can be installed at a time and are easy to replace. The PM200 modules are sold separately and are required to measure pressure.
The 2271A industrial pressure calibrator features dual test ports to connect multiple devices. A built-in electrical measurement module with HART capabilities enables closed loop, fully automated calibration on 4-20mA devices such as smart transmitters, gauges, and switches. It includes a 250Ω resistor to eliminate the need for an external resistor in order to enable HART communications.
