AEMC MR417 & MR527 AC/DC Current Probe (MR527) 100AAC, 150ADC, 10mV/A & 1000AAC, 1400ADC
1200.85
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Column filling
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Measurement Range |
|---|---|---|---|
$1,06007
|
In stock
|
1200.84
|
Measurement Range:
|
|
$1,19344
|
In stock
|
1200.85
|
Measurement Range:
|
Features
- Current range:
- MR417: 0.5 to 40Aac, 60Adc
- MR527: 0.5 to 100Aac, 150Adc
- Phase shift at 50/60Hz:
- MR417: ≤2°@ 40A, ≤1.5° @ 400A
- MR527: ≤2.2°@ 100A, ≤1.5° @ 1000A
- 10mV/A, 1mV/A output signal
- >1MΩ and ≤100pF load impedance
- 3000Adc or 1000Aac continuous for < 1kHz overload
- IP 40, EN 61326-1
- IEC 61010-1, EN 61010-2-32, Pollution Degree 2, 600V CAT III

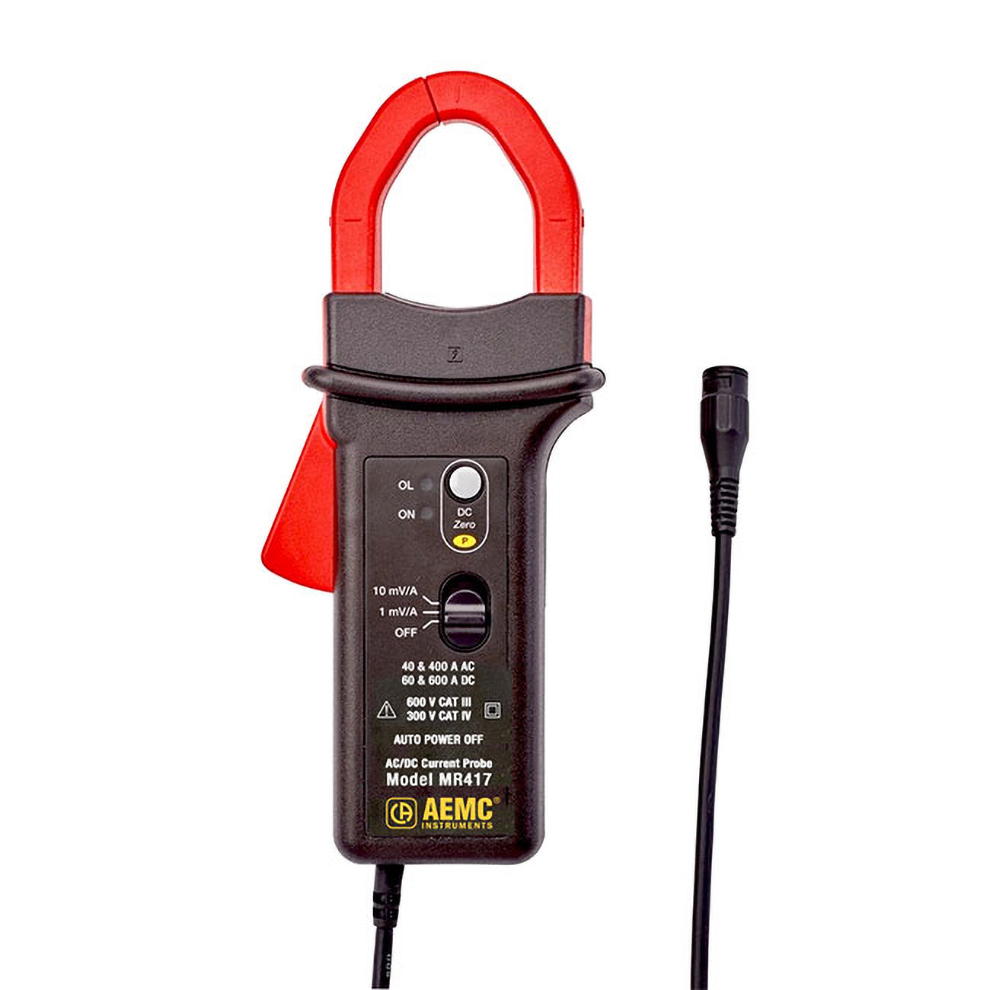

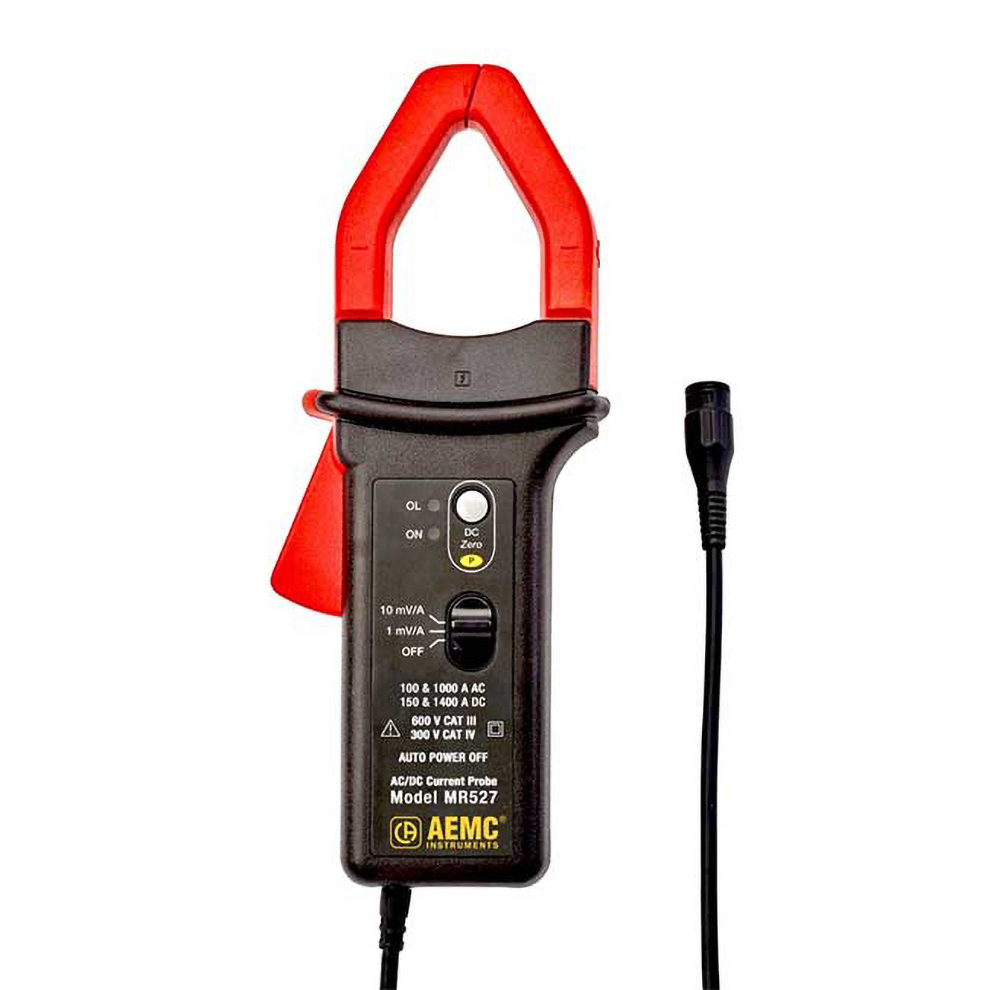

The AEMC MR417 and MR527 models are Hall Effect current probes designed for oscilloscopes, waveform displaying instruments, and other frequency sensitive displaying instruments with BNC inputs. Both MR417 and MR527 models have two ranges and a 6.5 ft (2m) lead terminated by a BNC connector. The MR417 can measure up to 400AAC and 600ADC and the MR527 can measure up to 1000AAC and 1400ADC. Both probes are powered by a 9V battery or by a standard 5V external power supply via a micro-USB connector (not supplied).
