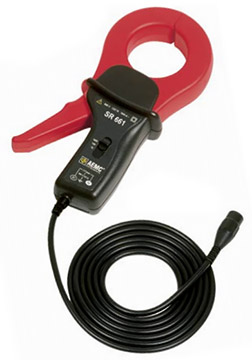

AEMC SR661 AC Current Probe
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Measurement range of 100mA to 2000Aac
- Large jaw opening accommodates up to two 500MCM conductors
- Low phase shift for power measurements
- Available with mV output signals
- Double Insulation
- Ergonomic design and easy operation
- Conforms to EN 61010, 600V Cat. III safety standard
- CE Mark
- UL approved for Canada and United States
AEMC SR661 AC current probe is ideal for industrial and utility environments and was designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters. It is built to the highest safety and performance standards including the CE Mark and is UL approved for Canada and United States.
Excellent transformation and low phase shift, plus a broad frequency response, permit accurate measurements of current for power and power quality measurements. The high quality magnetic cores and uniform windings provide sensitivity for very low level current measurements, as well as measurements up to 1200Aac. The SR661 provides an accurate voltage output of 1mV/A to 100mV. This voltage output enables instruments without current ranges to measure, display log currents through an AC voltage range or measure very low AC.
AEMC SR661 AC Current Probe Appluications
- Power quality measuring
- Low industrial loads
- Power load monitoring
- Waveform analysis
