Amprobe ALC-110 Leakage Clamp
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Max resolution 0.001mA (6mA range)
- Max range 60A (0.01A resolution)
- Limit audible/visual alarm
- 0.25, 0.5, 3.5, 10, & 12mA selectable limits
- 15Hz to 1kHz frequency range
- Low pass (50/60Hz)
- Appliance filters (IEC/EN 61557-16)
- Max readings and hold function
- Low influence of external low frequency magnetic fields
- @ IN: 3.500 to 600.0mA
- ≤30 A/m, operating class 2
- 6000 count display
- Typical battery life of 60 hours
- CSA, CE, and EMC compliance
- IEC/EN 61326-1, IEC/EN 61326-2-2

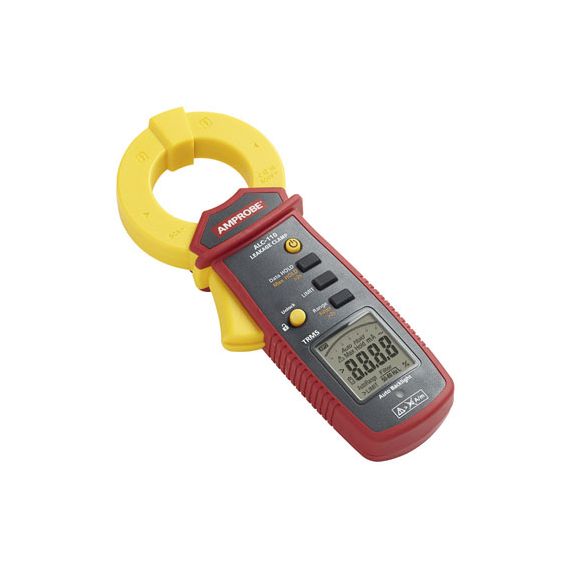

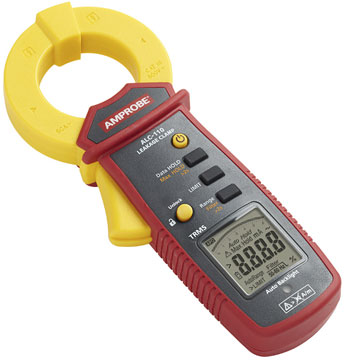

The Amprobe ALC-110 leakage clamp features a mechanical jaw lock to assure accuracy of low current measurements, avoiding disturbance from measured wires and magnetic fields.
Amprobe ALC-110 Leakage Clamp Applications
- Measure earth and differential leakage currents
- Measure leakage currents through the earth (PE) conductor
- Measure appliance current consumption without interruptions to the circuit
- Trace the source of earth leakage current
- Identify intermittent GFCI trips without switching equipment off
