Features
- Measuring ranges:
- True Power (kW) up to 750kW
- Apparent Power(kVA) up to 750kVA
- Reactive Power (kVAR) up to 750kVAR
- Active Power (kWh) 9999kWh
- Power Factor 0.3 to 1
- Phase Angle (φ) -180 to 180°
- Frequency measurement to 200Hz
- 2.16" (55mm) clamp jaw opening
- Large dual backlit LCD display (9999 count) with bargraph
- Manually store/recall up to 99 data sets
- Data Hold, Max/Min, and Auto power off

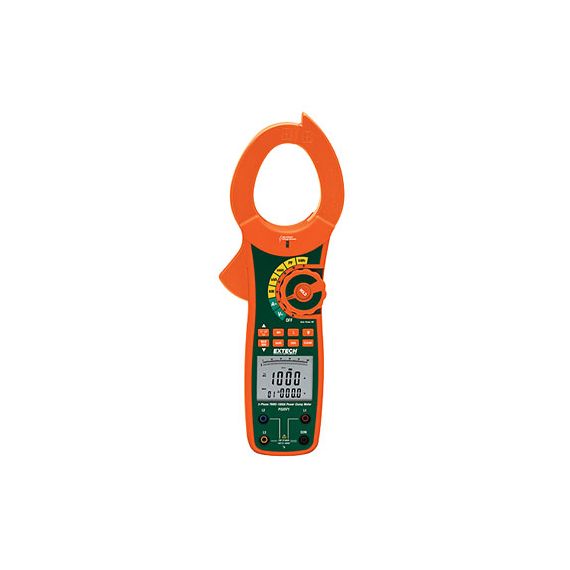

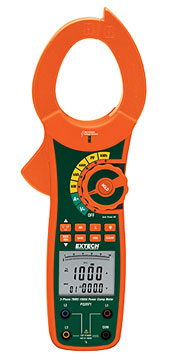

The Extech PQ2071 Clamp Meter operates as a True RMS Clamp Meter, Power Meter, Multimeter, and AC Voltage Detector. Featuring a CAT IV-600V safety rating, the PQ2071 measures AC Current, Voltage, Frequency and Power including True Power, Apparent Power, Reactive Power and Active Power. A USB interface is provided for connection to a PC for data logging function with included software.
Applications for the PQ2071 include:
- AC Power Quality evaluation
- Motor/Generator installation and repair
- Energy Audits
