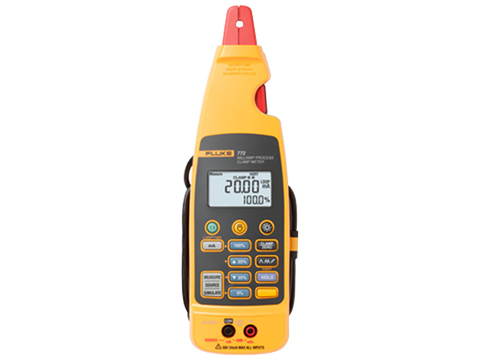

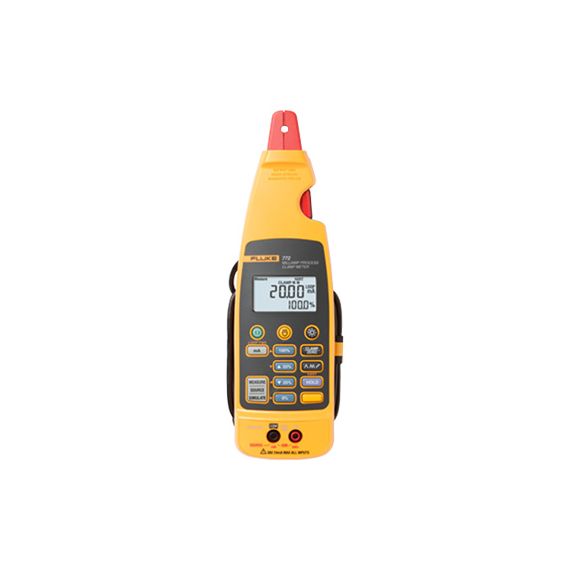

Fluke 772 Milliamp Process Clamp Meter
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- mA Measurement Range / Accuracy
- 0 to 20.99 mA / 0.2% + 5 counts (clamp)
- 21.0 to 100.0 mA / 1% + 5 counts (clamp)
- 0 to 24 mA / 0.2% + 2 counts (test jacks)
- mA Source Range / Accuracy
- 0 to 24.00 mA 0.2% / + 2 counts
- mA Simulate Range / Accuracy
- 0 to 24.00 mA 0.2% / + 2 counts
- Simultaneously measure mA in-circuit with 24V loop power
- auto-off, backlight timeout extend battery life
The Fluke 772 Milliamp Process Clamp Meter measures 4 to 20 mA signals without "breaking the loop". The 772 meters can source 4 to 20 mA signals for testing control system I/O or I/Ps, simulate 4 to 20 mA signals for testing control system I/O and measure 4 to 20 mA signals with in-circuit measurement. They can also simultaneously measure milliamps in-circuit with 24 V loop power for powering and testing transmitters as well as source mA output signals in a linear ramp or 25% step output.
