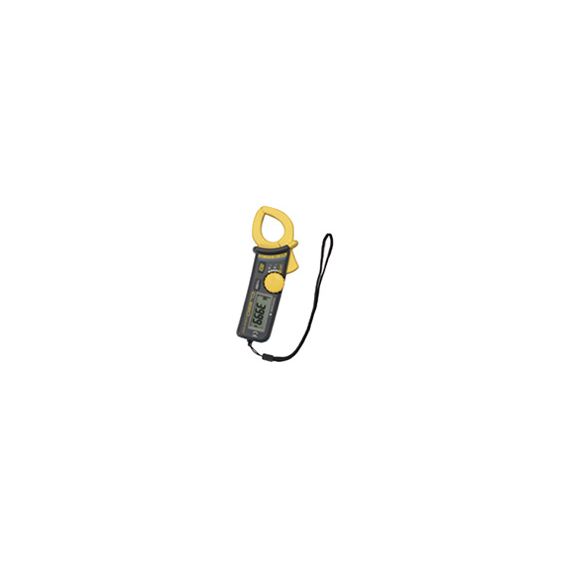

Yokogawa CL200 Series Clamp-On Testers 24mm

CODE:

Write a review

$1,638⁰⁰

In stock

Model:

+ −

Delivery

Payment options

Our advantages

— 12 months warranty
— SMS notification
— Return and exchange
— Different payment methods
— Best price

Options
Description
Documents

Column filling

Sort by Price	Sort by Availability	Sort by CODE	Sort by Model
$1,638⁰⁰	In stock + −	CL220	Model: 24mm
$1,521⁰⁰	In stock + −	CL250	Model: 55mm
$1,547⁰⁰	In stock + −	CL255	Model: 55mm, True RMS

Features

Light weight & compact design
Mean value display or True RMS display
Sleep function
Response time: 2 seconds

The Yokogawa CL200 Series clamp-on tester is capable of measuring currents in conductors from 24mm to 55mm in diameter. Yokogawa CL200 Series clamp-on testers are lightweight and have a compact design for easy portability. All four models of Yokogawa CL200 Series clamp-on testers offer data hold sleep function features.

Model		CL220	CL235	CL250	CL255
Diameter of measurable conductor		24mm	33mm	55mm	55mm
Display		3999	3999	3999	3999
DC current	Range	40/300A	400/1000A	400/2000A	400/2000A
DC current	Resolution	0.01A	0.1A	0.1A	0.1A
AC current	Range	40/300A	400/600A	400/2000A	400/2000A
	Resolution	0.01A	0.1A	0.1A	0.1A
	Frequency Characteristics	20~1kHz	40~1kHz	40~1kHz	30~1kHz
	Method of detection	Mean value	True RMS	Mean value	True RMS
Standards		EN61010-1, EN61010-2-032	EN61010-1, EN61010-2-031, EN61010-2-032	EN61010-1, EN61010-2-031, EN61010-2-032	EN61010-1, EN61010-2-031, EN61010-2-032
