AquaMetrix ASTX Series Conductivity Sensor Cell constant 10 (Graphite Electrodes) (1-25 mS/cm) Standard 15 ft (4.5m) cable
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Custom Cable Length | Sort by Cell Constant and Electrode Type |
|---|---|---|---|---|
$1,11150
|
In stock
|
ASM01TX-050
|
Custom Cable Length:
|
Cell Constant and Electrode Type:
|
|
$1,03350
|
In stock
|
ASM01TX-015
|
Custom Cable Length:
|
Cell Constant and Electrode Type:
|
|
$1,11150
|
In stock
|
ASM1TX-050
|
Custom Cable Length:
|
Cell Constant and Electrode Type:
|
|
$1,03350
|
In stock
|
ASM1TX-015
|
Custom Cable Length:
|
Cell Constant and Electrode Type:
|
|
$1,37150
|
In stock
|
ASG10TX-050
|
Custom Cable Length:
|
Cell Constant and Electrode Type:
|
|
$1,29350
|
In stock
|
ASG10TX-015
|
Custom Cable Length:
|
Cell Constant and Electrode Type:
|
Features
- Integral 4-20mA transmitter can be fed directly to a PLC
- Configurable through RS-485.
- Three Cell Constants: 0.1, 1, and 10
- Electrodes: 316 SS (ASM1TX and ASM01TX) or Graphite (ASG10TX)
- Pt1000RTD for automatic temperature compensation
- Factory calibrated conductivity, temperature and 4-20 mA output.

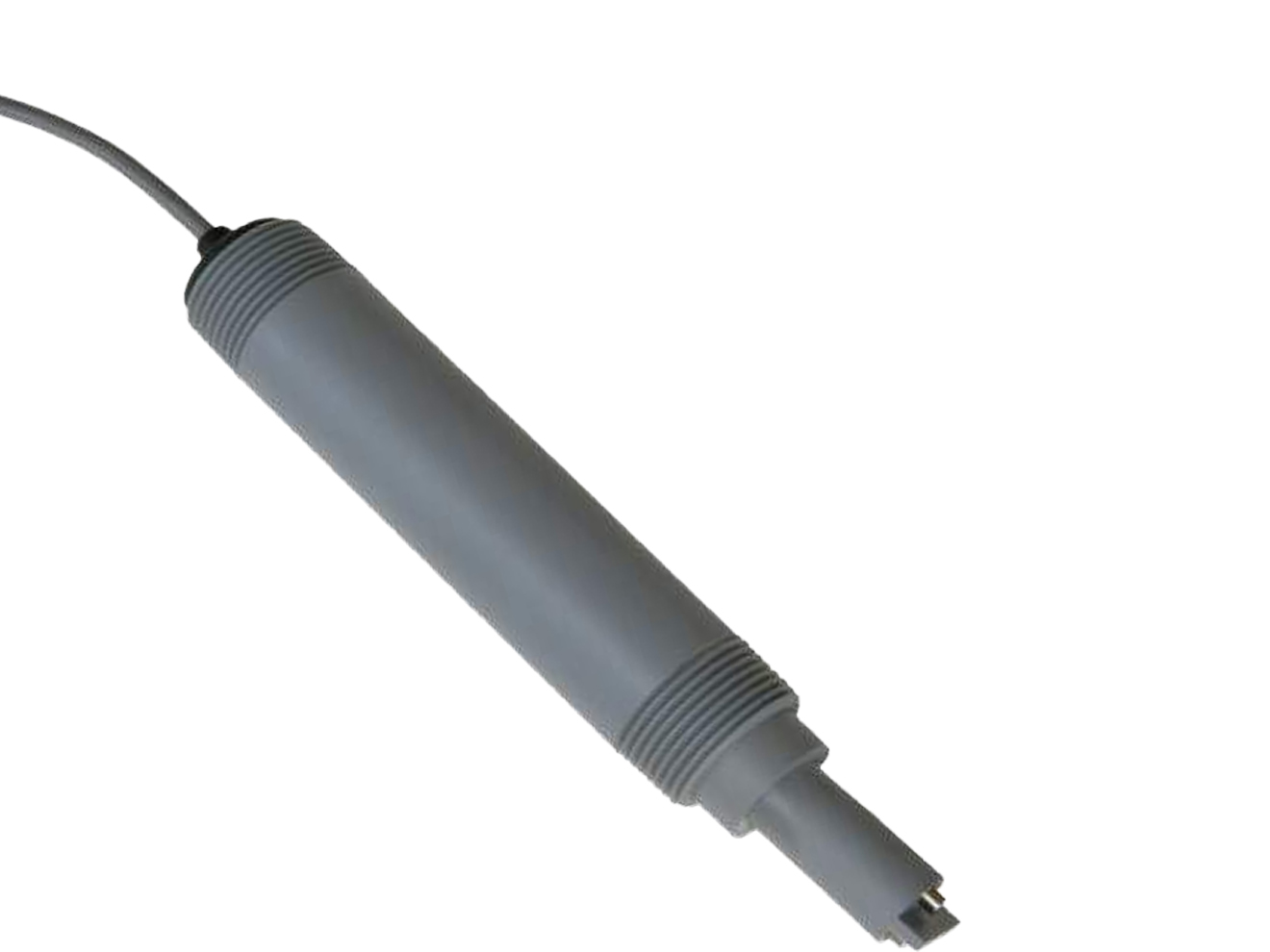

The AquaMetrix ASTX Series Conductivity Sensor is a direct, 4-20 mA sensor that has a AM-2250TX transmitter enclosed into a 1 inch CPVC body. It has a programmable cell constant, temperature compensation, calibration and a 4-20mA output. Factory calibrated and three cell constants from 0.1 to 10 are available to cover large range of water sample. Integral automatic temperature compensation Pt1000Ω RTD is standard on all types and provides compensation to 25 °C. The temperature element is in close thermal contact with the liquid being measured to ensure fast response to changing temperature.
ow-through mounting incorporates a special compression fitting (AM-CFT-R5) which allows adjustable insertion length in 1.5-inch NPT fitting or in the side of a tank. This design avoids the nuisance of disconnecting the cell cable when installing or removing the cell for cleaning.
Submersion mounting is achieved via the AM-ARM-5 mounting hardware. Mounting hardware is available which includes a 4 foot length of CPVC pipe and a simple but versatile adjustable bracket for hanging on the rim of the tank.
A hot tap ball valve mounting assembly permits removal of the cell from process piping or from tanks without shutting down the system.
The AS-TX is just one of many TX series (4-20 mA output) sensors that work with the AM-2300 web-enabled controller or virtually any PLC.
The sensor is compatible with any off-the-shelf 1” NPT fittings and serves as a drop-in replacement in fittings designed for the previous iteration.
Applications
- Cooling towers
- High purity water applications
- Pharmaceutical Applications
- Reverse osmosis systems
- Food and Beverage
- Aquaculture
- Agriculture
