MadgeTech PRTemp1000D Differential Pressure Data Logger 0 to 300 PSI
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Range |
|---|---|---|---|
$3,05370
|
In stock
|
PRTemp1000D-100
|
Range:
|
|
$3,05370
|
In stock
|
PRTemp1000D-30
|
Range:
|
|
$3,05370
|
In stock
|
PRTemp1000D-300
|
Range:
|
|
$3,05370
|
In stock
|
PRTemp1000D-500
|
Range:
|
Features
- Choice of max pressure range
- 30, 100, 300, or 500 PSID
- -4 to 176°F (-20 to 80°C) temp range
- Non-volatile memory for 16,383 readings
- Rugged, reusable, & submersible
- Programmable start time
- Real-time operation
- 1 year battery life

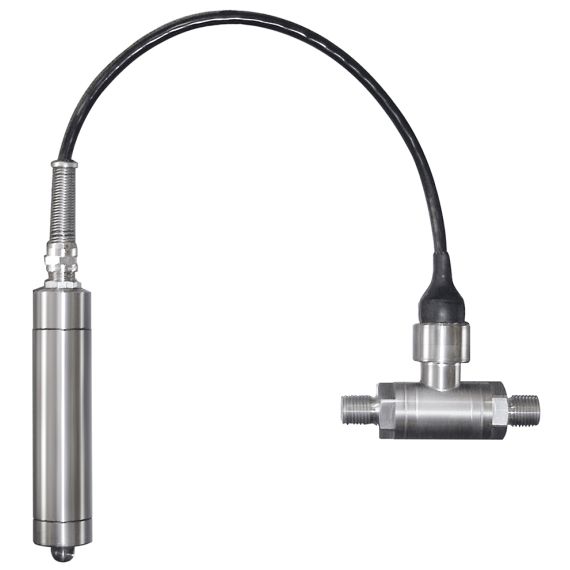

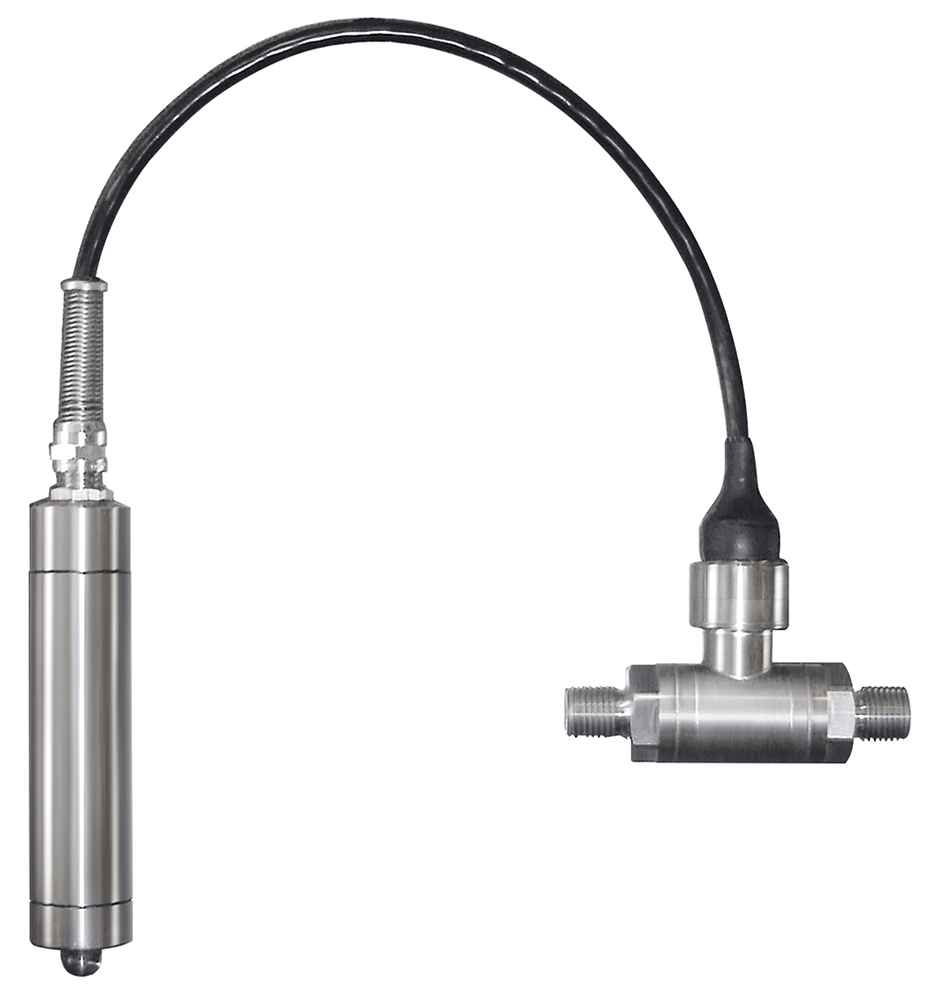

The PRTemp1000D is a rugged pressure recorder to accurately monitor and record pressure and temperature at user programmable reading intervals. The rugged stainless steel design allows for the device to be placed in harsh environments, which makes it well suited for use with air conditioning systems, chilled water, hot water, air, gas, oil and steam pressure systems.
The internal temperature sensor provides accurate temperature measurements without the need for a separate temperature recorder. The logger can be started to take measurements as often as every two seconds, up to one reading every twelve hours. It will store up to 16,383 readings in its non-volatile memory.
The PRTemp1000D uses a rugged stainless steel pressure strain gauge to accurately measure the pressure. The device comes standard with a ¼" NPT differential fitting.
Applications for the MadgeTech PRTemp1000D:
- Pneumatics
- Process control systems
- Gas compressors
- Natural gas production
- Lubrication systems
- Chemical processing
- Pulp and paper processing
- Medical instrumentation
- Environmental studies
- Waste water treatment
- HVAC
- Oil & gas industries
