E+E HUMOR 20 Humidity Calibrator 4 ports Ø 12 to 13 mm (0.5 to 0.52")

CODE:

Write a review

$57,903³⁰

In stock

Cover for Measurement Chamber:

+ −

Delivery

Payment options

Our advantages

— 12 months warranty
— SMS notification
— Return and exchange
— Different payment methods
— Best price

Options
Description
Documents

Column filling

Sort by Price	Sort by Availability	Sort by CODE	Sort by Cover for Measurement Chamber
$53,332⁵⁰	In stock + −	HUMOR20-M1	Cover for Measurement Chamber: None
$57,903³⁰	In stock + −	HUMOR20-M1-HA020209	Cover for Measurement Chamber: 1 port Ø 30 mm (1.2")
$55,649¹⁰	In stock + −	HUMOR20-M1-HA020202	Cover for Measurement Chamber: 1 port Ø 16 to 20.5 mm (0.6 to 0.8")
$55,649¹⁰	In stock + −	HUMOR20-M1-HA020203	Cover for Measurement Chamber: 1 port Ø 20.5 to 25.5 mm (0.8 to1")
$56,126²⁰	In stock + −	HUMOR20-M1-HA020201	Cover for Measurement Chamber: 2 ports Ø 12 to16 mm (0.5 to 0.6")
$56,221¹⁰	In stock + −	HUMOR20-M1-HA020204	Cover for Measurement Chamber: 3 ports Ø 8 to 12 mm (0.3 to 0.5")
$57,903³⁰	In stock + −	HUMOR20-M1-HA020205	Cover for Measurement Chamber: 4 ports Ø 12 to 13 mm (0.5 to 0.52")
$57,903³⁰	In stock + −	HUMOR20-M1-HA020207	Cover for Measurement Chamber: 4 ports Ø 12 to 16 mm (0.5 to 0.6")
$57,903³⁰	In stock + −	HUMOR20-M1-HA020208	Cover for Measurement Chamber: 4 ports Ø 16 to 20.5 mm (0.6 to 0.8")

Features

Fundamental dual pressure reactor principle
10 to 95% operating range
0.3 to 0.9% RH accuracy
Traceable calibration
traceable to international standards
OEKD certificatable
IP40 protection

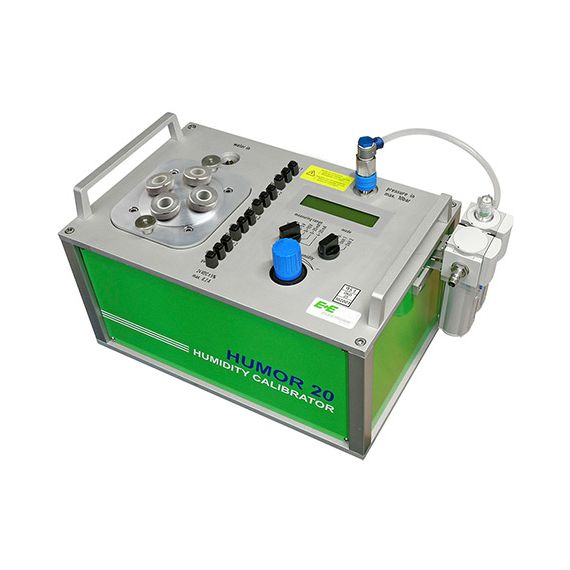

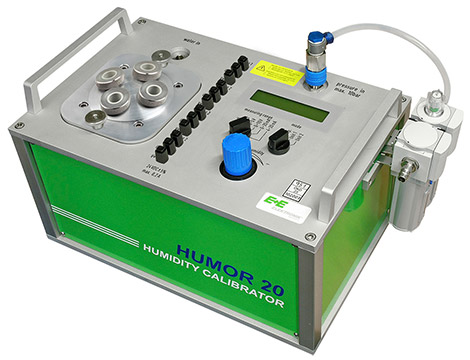

The E+E HUMOR 20 Humidity Calibrator generates relative humidity in the range 10 to 95% RH and can accommodate probes diameter 0.3 to 1" (8 to 25.5 mm) as well as data loggers or room mount humidity sensors. The HUMOR 20 operates on the fundamental dual-pressure reactor principle similar to the references used in national bureaus for standards. It can be employed both as laboratory and portable humidity generator and reference. For operation HUMOR 20 requires only distilled water, clean oil-free air with a pressure of 10 bar (145 psi) and a power supply between 90 to 230 VAC.

Applications for the HUMOR 20 include:

Calibration laboratories
Reference device
Bureau of standards
Manufacturers of measurement instruments

EE-Humor20-humidity-calibrator-datasheet (EE-Humor20-humidity-calibrator-datasheet.pdf, 1,584 Kb) [Download]

ee-humor20-humidity-calibrator-declaration-of-conformity (ee-humor20-humidity-calibrator-declaration-of-conformity.pdf, 321 Kb) [Download]

EplusE-HUMOR-20-Manual (EplusE-HUMOR-20-Manual.pdf, 12,917 Kb) [Download]
