Rotronic HygroGen2 Humidity and Temperature Generator 20L chamber, 17L working volume
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Size |
|---|---|---|---|
$135,27254
|
In stock
|
HG2-XL
|
Size:
|
|
$90,17684
|
In stock
|
HG2-S
|
Size:
|
Features
- 5 to 95% RH humidity control range
- <±0.1% RH stability
- 32 to 140°F (0 to 60°C) temperature control
- <±0.018°F (0.01°C) stability
- Chamber temperature gradients
- <±0.09°F (0.05°C) at 59 to 122°F (15 to 50°C)
- <±0.18°F (0.1°C) at 41 to 140°F (5 to 60°C)
- <±0.27°F (0.15°C) at 32 to 41°F (0 to 5°C)
- Typical calibration uncertainty (k=2)
- ±1.5% RH at 73.4°F (23°C)
- ±0.27°F (0.15°C) at 59 to 122°F (15 to 50°C)

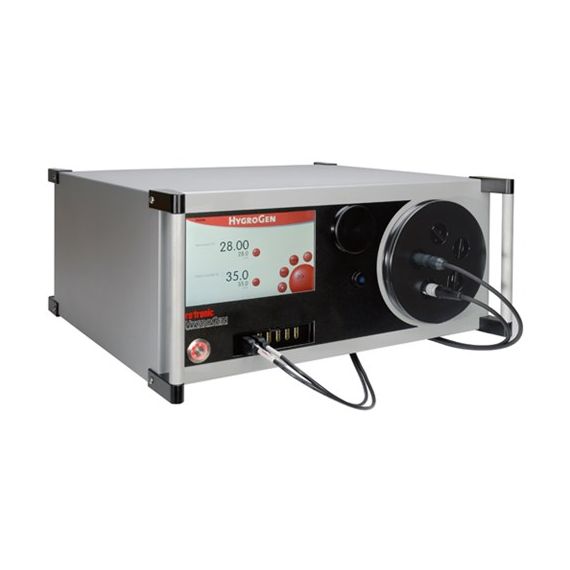

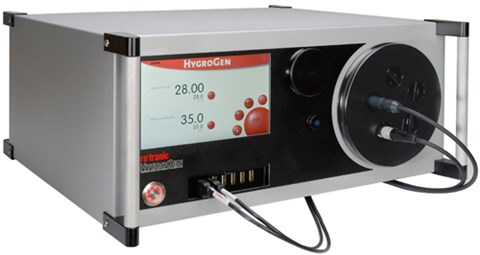

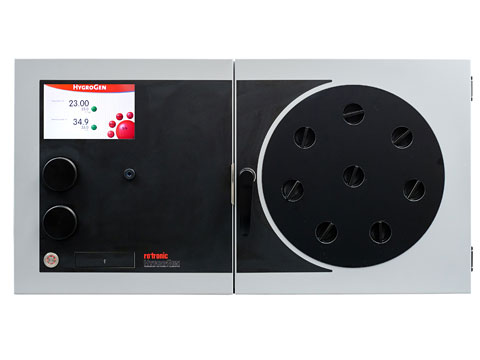

The Rotronic HygroGen2 humidity and temperature generator calibrates up to five relative humidity probes simultaneously and typically requires less than 5 minutes to equilibrate from one humidity condition to another when temperature is kept constant. The Rotronic HygroGen2 utilizes a mixed flow method to precisely generate a known humidity and temperature condition within a well insulated chamber. A desiccant cartridge provides low humidity and a saturator provides high humidity. These are mixed together by a control system to create stable humidity within the range of 5 to 95% RH. Temperature is controlled with a thermoelectric heat pump and can be set within the range of 0 to 60°C.
Rotronic HygroGen2 humidity and temperature generators are self-contained units that require no external resources except main power. It can also be used together with an external chilled mirror reference instrument. The Rotronic HG2 features a user-friendly touch screen graphical interface as well as a programmable ramp and soak function with multiple steps and profiles. The HG2 humidity generator is pre-loaded with the Rotronic HW4-P data acquisition software which is used for calibrating and adjusting the humidity temperature probes and instruments.
The embedded PC of the Rotronic HygroGen2 generator allows for configuration, control and automated functions. Fully functional Rotronic HW4-P software with data acquisition, calibration and adjustment functions for HygroClip probes is also included. An integrated nine-port USB hub is designed for connecting Rotronic USB probe adapters and peripherals, such as a mouse and keyboard. An RJ-45 Ethernet port makes PC communication quick and easy. The Rotronic HG2 also features an intuitive, easy-to-use touch screen graphical user interface.
