Features
- 4 - 20mA or 0 - 10V loops
- 7 calibration set-points
- Accuracy 0.1%
- TxSim and RxTest modes
- Autostep output - adjustable rate
- Battery powered PP3
- Internal loop drive supply

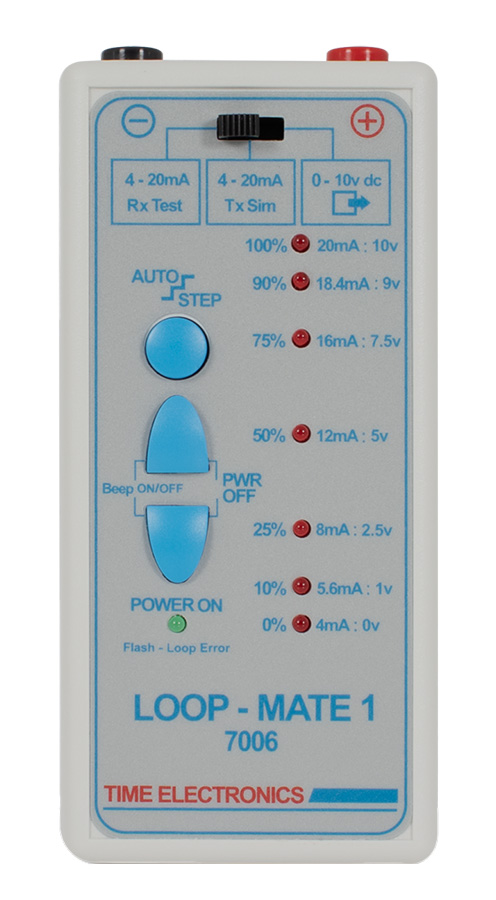

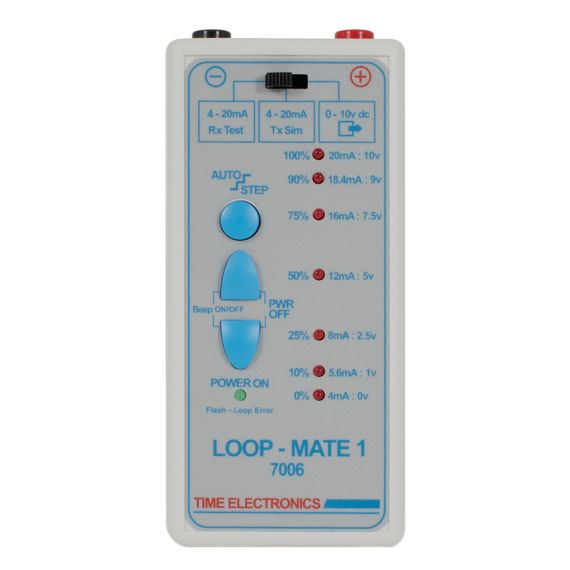

The Time 7006 loop simulator and source is a low-cost, pocket sized instrument designed for test and calibration of process loops. Simplicity of operation is the key feature - no keypads or complicated selections. Engineers will be able to pick up the 7006 and get to work immediately. Just select 4 - 20mA or 10V loop, and TxSim, RxTest, or 0 to 10V DC simulation mode. Internal loop drive supply for powering the loop is also available if required.
As a loop simulator the 7006 acts as a source to provide the loop signals, 4 - 20mA or 0 - 10V. No complicated selection of the output, just operate up/down buttons to increase or decrease the signal. There are 7 set-points, 0%, 10%, 25%, 50%, 75%, 90%, 100%. Each is indicated on a high brightness LED and an audible beep sounds as you step between them. Auto-stepping mode (adjustable rate) allows the 7006 to be left connected stepping up and down.
