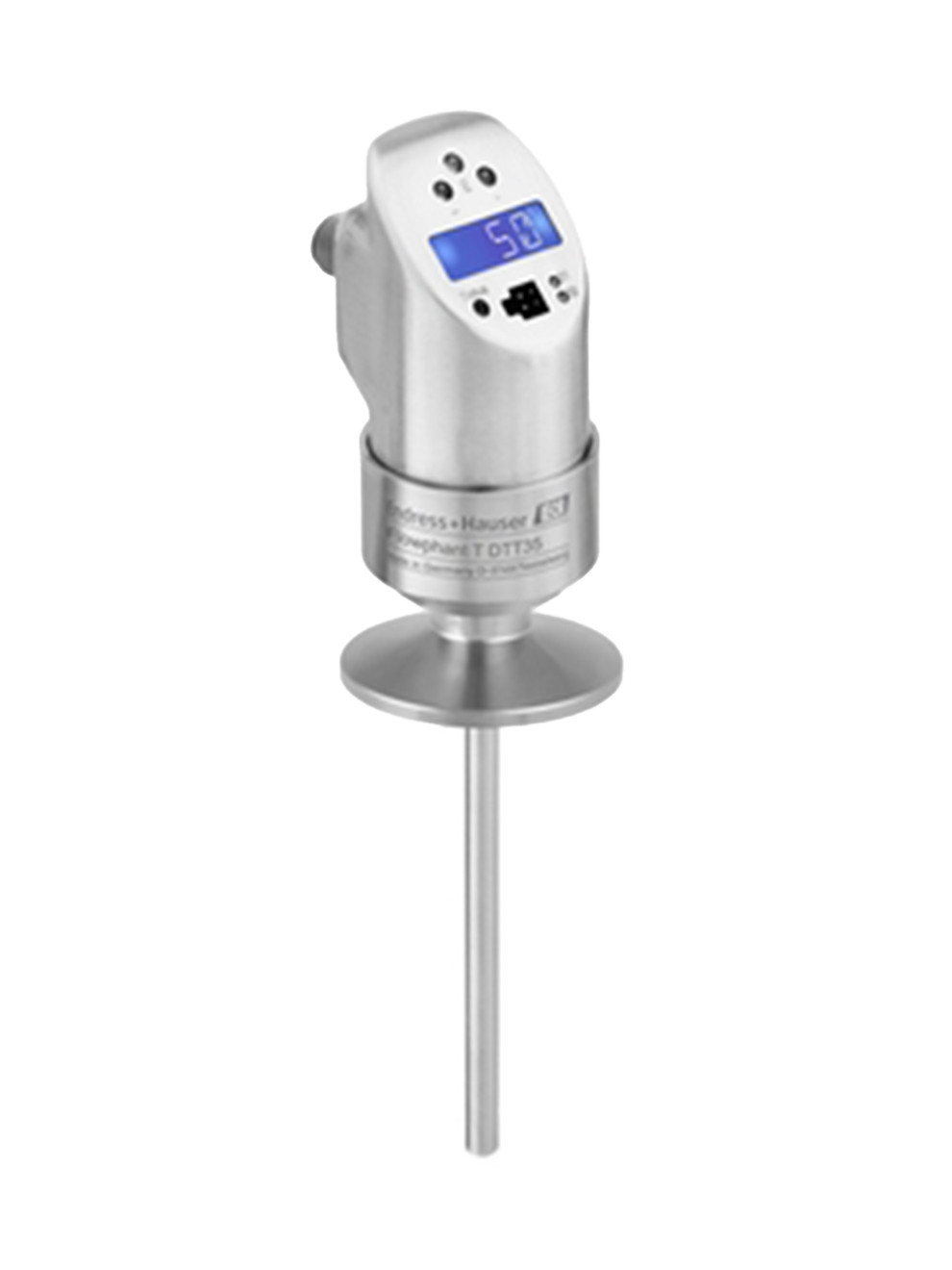

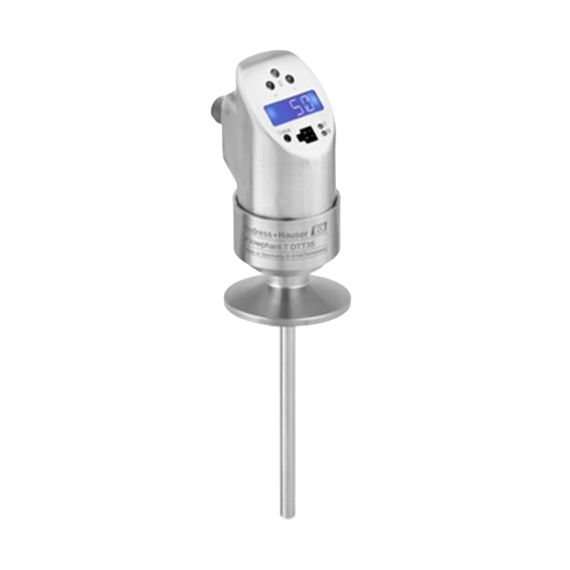

E+H Flowphant T DTT35 Flow Switch
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Measuring principle: thermal
- Nominal diameter: DN 25 to 1000 (1 to 40in)
- Max measurement error: 2 to 10%
- Max process pressure: 100bar (1740psi)
- Measuring range: 0.03 to 3 m/s (0.1 to 9.84 ft/s)
- Medium temperature range:
- -20 to 85°C (-4 to 185°F)
- CIP-able to 130°C / 266°F
- Display: LED, LCD
- Output(s):
- 1 x PNP switchable output
- 1 x 4 to 20mA analog output
- IP66
- 3-A, EHEDG
The E+H Flowphant T DTT35 Flow switch measures relative mass flow rates of liquid mediums with virtually no pressure loss. The DTT35 can be configured with a second switch output or 4 to 20mA analog output for temperature monitoring or flow rates output as a percentage. The design includes 3-A and and EHEDG certification, with varied hygienic process connections for adaptable installation to numerous applications. Function checks and processing information happen onsite thanks to the digital LCD display. A 310 degree rotational top house section makes for ready display access in various installation positions.
The E+H Flowphant T DTT35 Flow Switch:
- Cooling water circuit monitoring
- Leak monitoring
- Lubrication circuit monitoring
- Filter monitoring
