Features
- Borosilicate Kinglass metering tube
- 0.23 to 85GPM (Water)
- 1.15 to 285 SCFM (Air)
- Direct reading, detachable scales
- Size 3 to 6 = 10 inch (250mm)
- Size 8 to 9 = 8 inch (200mm)
- ±2% of full scale flow accuracy
- 10:1 turndown & 0.5% repeatability
- 316L SS Fittings – 200°F (93°C) max temp
- Max pressure of 300 psig (sizes 3 & 4 with SS fittings)
- Varies based on size and fitting material

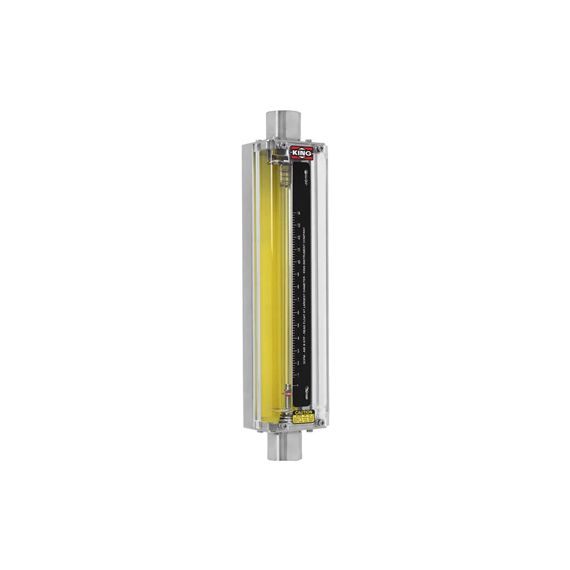

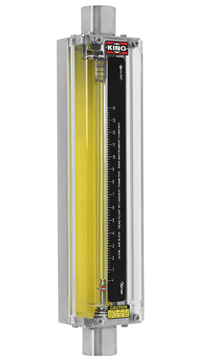

The King Instruments silver series flow meter is available in 35 flow ranges and 6 tube sizes with horizontal and vertical connection options. The powder-coated 304 stainless steel case and precision molded polycarbonate shield will tolerate most corrosive applications.
It comes standard with 316L stainless steel internal components and fitting material and Viton o-ring, but other options are available:
- Hastelloy C-276 internal components (optional)
- PVDF fitting material (optional with FNPT only)
- Buna N, EPR, and Kalrez o-ring materials (optional)
