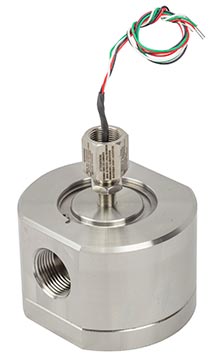

Macnaught MX Series Hazardous Area Industrial Flow Meters
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Volumetric flow measurement
- 1/4 to 4 inch sizes available
- Up to ±0.5% accuracy (±1.0% for MX06P, MX09P)
- Flow ranges from 0.13GPH to 317GPM
- Pressure rating up to 2000psi
- Aluminum & stainless steel meter bodies
- FEP/PTFE encapsulated seals
- Switch Type NPN Open Collector
- Suitable for use in the harshest outdoor environments
- 2-year warranty
Macnaught MX Series hazardous area industrial meters are positive displacement oval gear flow meters that are designed to cover a broad range of industrial fluid measurement applications. Rated intrinsically safe or explosion proof, the MX Series is designed to endure the rigors of the heavy industry and presents an ideal solution for the precise transfer or dispensing (batching) of fluids in environments where there is the potential of exposure to flammable gases, or vapors.
Macnaught hazardous area industrial meters are constructed utilizing aluminum or stainless steel body suitable for use in the harshest environments. Their bearing-less PTFE/PPS rotors provide exceptionally low pressure drop and can even be used in gravity fed applications. This unique rotor design ensures minimal wear resulting in many years of reliable service. This approach has proven over time to provide consistently accurate flow measurement that is not affected by variations in temperature, viscosity, or pressure.
Another benefit of Macnaught's unique rotor design is simplicity of repair. With only two moving parts, the meters are simple to repair, require minimal repair parts stock, and can even be repaired inline, resulting in less downtime.
Oval gear flow meters are ideally suited to applications requiring accurate dispense quantities. Measurement of very low flow rates, pulsating flow, small batch sizes, viscous products, and non-conductive liquids are all ideal uses for oval gear meters. Because these meters don't require flow conditioning, no straight piping runs are required, so they can be used in installations where space is limited without effecting performance.
With a range of display, output and process connection options, Macnaught MX Series hazardous area industrial flow meters are the perfect choice for a variety of applications including:
- Chemical batching
- Additive injection
- Hydraulic test stands
- High temperature chemical processes
- High pressure chemical processes
- Food and beverage batch processes
- Ethanol blending and production
- Pulp and paper
