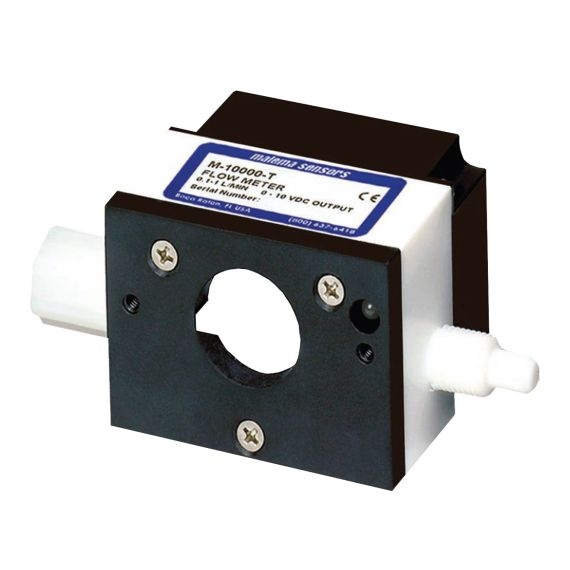

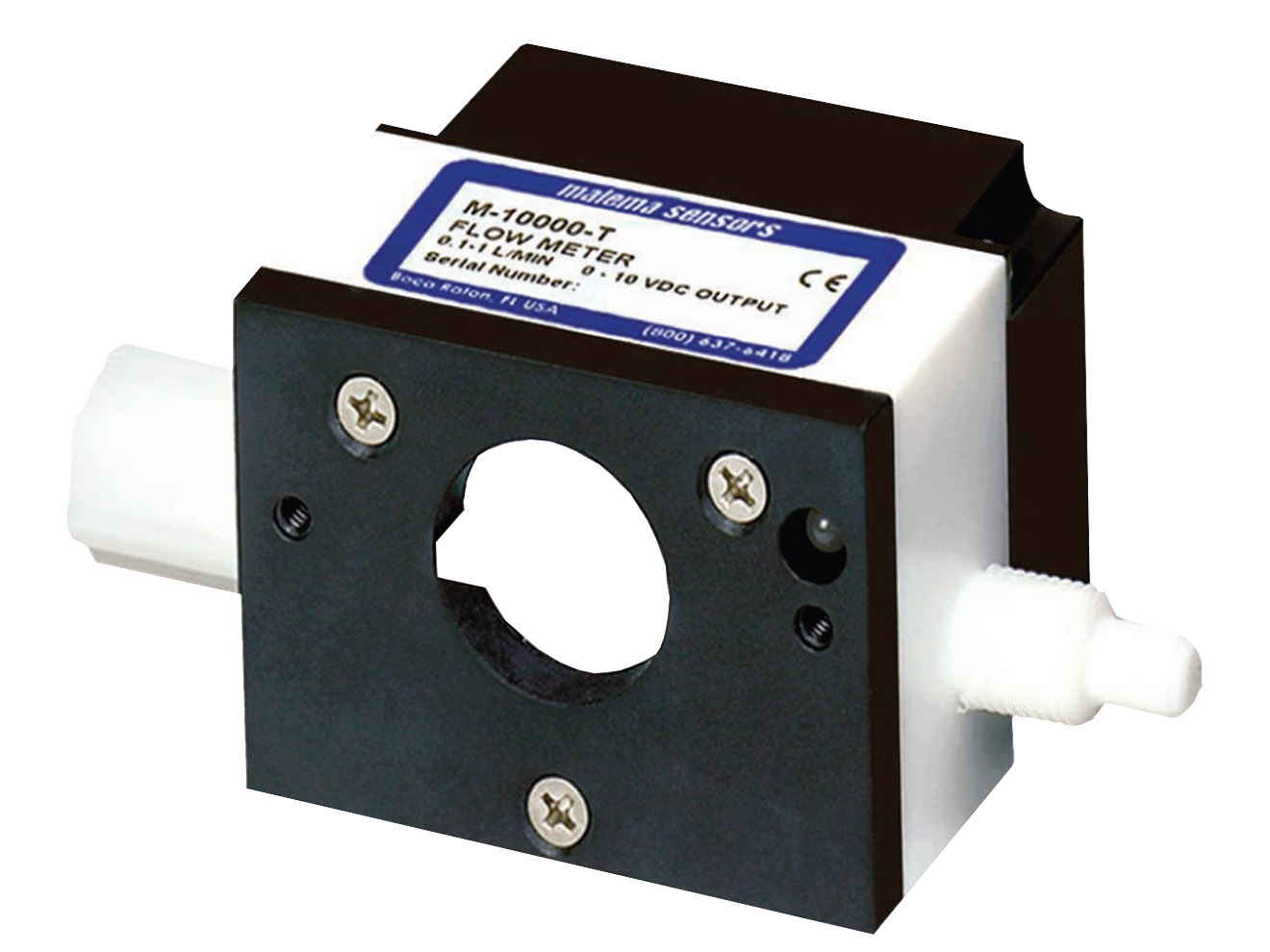

Malema M-10000T PTFE Paddle Wheel Flow Meter
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Wide flow rangeability
- Visual Indication
- 4-20 mA, 0-10 VDC, or pulse output
- Built in adjustable flow switch
- Small footprint
- Set point accuracy: ±5%
- Repeatability: ±0.5
- Flow ranges:
- 0.1-50 l/min
- 0.13-13 GPM
- Set point range for air is referenced at 14.7 psia and 70° F
- Set point range for water is referenced at 70° F
The M-10000T PTFE Paddle Wheel Flow Meter measures flow electronically in a wide range of industries. Enhancements to tangential turbine flow meter systems are producing a flow sensing device that is smaller, easier to install, and more accurate than ever before. The M-10000T fosters signal conditioning.
The rotational velocity of the rotary wheel caries linearly with the average velocity of the fluid flowing through the flow meter. Producing a square wave pulse from magnets embedded in the vanes of the rotor wheel. Depending on the output version of the M-10000T, the pulse signal is relayed directly, converted to a 0-10 VDC (voltage) output or a 4-20 mA (current) output. The voltage and current models are span adjustable over the flow range of the unit.
Applications
- Cooling systems
- Laser equipment
- Wet process systems
- CVD, CMP, and lithography tools
- Corrosive chemical distribution
