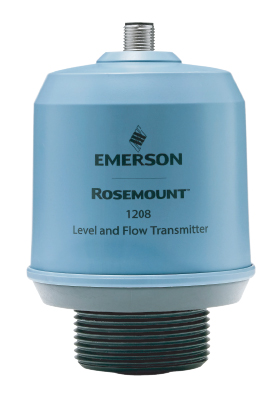

Rosemount 1208A Level and Flow Transmitter
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- 4-20 mA output and IO-Link
- 49 ft maximum measuring range
- 200 mm/s maximum level rate
- 59 to 77°F (15 to 25°C) temperature range
- 14 to 15 psi (960 to1060 mbar) ambient pressure
- FMCW radar with 80 GHz technology
- Volume flow measurement in open channels
- Bluetooth capability
- Variable process connections
- Cable assemblies up to 20m available
The Rosemount 1208A Level and Flow Transmitter has been specifically designed for applications in water and wastewater, utilities and simple level applications. The radar uses continuous non-contacting technology and has a G 1 ½” or NPT 1 ½” threaded connection and IO-Link, 4-20 mA (3-wire), switch communication protocols. Bluetooth-enabled configuration available. Expansive process connections offer high adaptability for installation points, with optional cable assemblies up to 20m in length.
The Rosemount 1208A delivers accurate level measurement and open channel flow calculations in a compact and submersible PVDF housing with Drinking Water, FDA, EC 1935/2004 certifications. The Rosemount 1208A can also be connected to a controller, such as the Rosemount 3490 Series.
