AOI Series 2500 Oxygen Transmitter
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Measurement ranges
- 0-2, 0-5, 0-10, 0-25, 0-50 and 0-100%
- ±1% of full scale accuracy
- 90% of full scale in less than 20 seconds response time
- 40 to 104°F (5 to 40°C) operating temperature range
- 14-32 VDC input power
- 4-20 mADC output
- 2-year electronics and 1-year sensor warranty
- NEMA 4 (IP66) housing for standard configuration

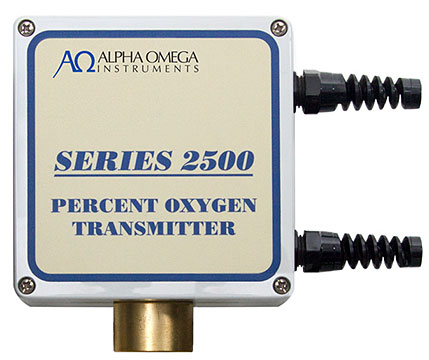

The AOI Series 2500 oxygen transmitter is a loop-powered percent analyzer designed to provide oxygen measurements in a variety of background gases. The transmitter's enclosure is made from durable polycarbonate. The 4-20 mADC output can be used with a data logger, recorder, programmable logic controller, or digital control system.
The Series 2500 features an extended-life oxygen sensor that provides exceptional performance, accuracy, and stability. For applications where carbon dioxide is present in the sample gas, the sensor retards passivation of the sensor anode by allowing the products of oxidation to dissolve in the electrolyte. In effect, the sensor is renewed continuously, resulting in an increase in sensor life even if exposed to 100% carbon dioxide. The enhanced mechanical design of the sensor ensures longer life, and virtually eliminates leakage of electrolyte.
Optional equipment for the analyzer includes a sample filter, a pressure regulator, and a flow meter.
