AOI Series 3510 Oxygen Transmitter
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Measurement options
0-10; 0-50; 0-100; 0-500; 0-1,000; 0-5,000;
0-10,000; or 0-20,000 ppm - ±1% of full scale accuracy
- 90% of full scale in less than 10 seconds response time
- 40 to 104°F (5 to 40°C) operating temperature range
- 115 VAC/50-60Hz; or 24 VDC input power
- 4-20 mADC analog output
- 2-year electronics and 1-year sensor warranty
- NEMA 4X (IP66) watertight enclosure

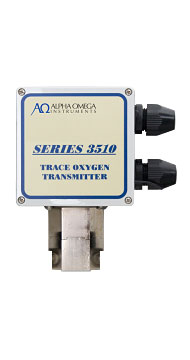

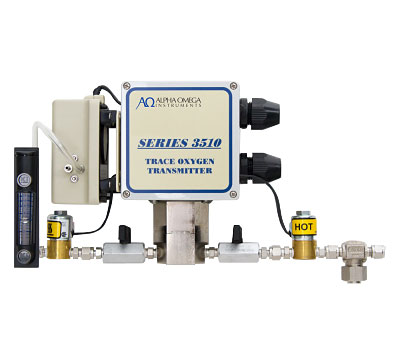

The AOI Series 3510 oxygen transmitter is the AC-powered counterpart to the Series 3500, and is recommended when AC power is available or preferred. The transmitter's enclosure is made from durable polycarbonate. The 4-20 mADC output can be used with a data logger, recorder, programmable logic controller, or digital control system.
The Series 3510 features an ambient-temperature electrochemical sensor. The enhanced mechanical design of the sensor ensures longer life, and virtually eliminates leakage of caustic electrolyte. The sealed sensor is not position-sensitive and does not require manual adjustment based on changes in the molecular weights of sample gases such as helium and hydrogen. The output from the sensor is both linear and temperature-compensated to provide optimum performance.
An optional CO2-tolerant trace oxygen sensor is capable of providing accurate oxygen readings in gases containing up to 100% CO2 without shortening the life of the sensor.
AOI Series 3510 Oxygen Transmitter Applications
- Heat Treating
- Air Separation
- Glove Boxes
- Inert Gas Generators
- Chemical Manufacturing
- Process Dryers
- Vessel Blanketing
- Petrochemical Processing
- Pharmaceutical Manufacturing
- Anaerobic Chambers
- Food Processing
- Beverage Processing
