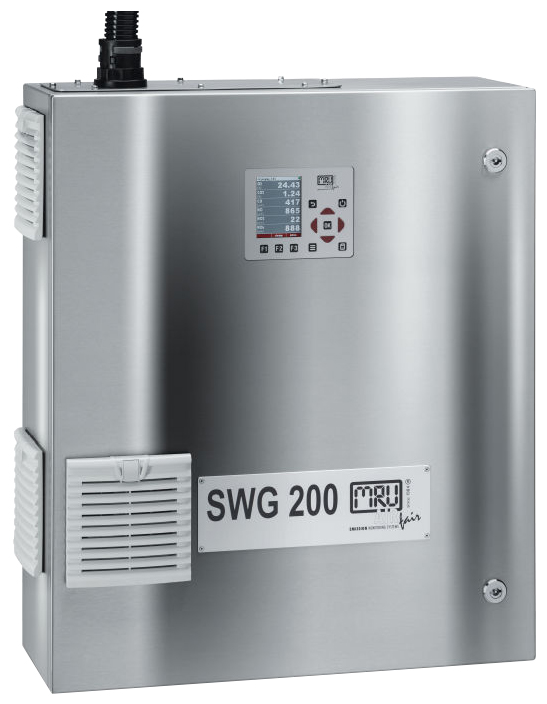

MRU SWG 200 Continuous Emission Monitor
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Measures C3H8, CH4, CO, CO2, CxHy, H2, H2S, N2O, NO, NO2, NOx, O2, and SO2
- Choice of 4-gas, 6-gas, or 8-gas infrared NDIR measurement modules
- Efficient sample gas filtration by sintered PTFE particle filters
- Electrochemical or paramagnetic O2 sensor
- Electrochemical H2 and H2S measurement
- Zero offset negligible due to automatic zeroing
- Span offset less than 0.2% of the measuring range per month
- 4 analog outputs, 4-20mA, galvanically isolated, max load 500R
- 2 alarm relays, potential-free contacts: 24 Vdc, 5A
- IP54 aluminum cabinet
- Illuminated 3.5" TFT color display
- RS485 digital interface (Modbus RTU)
- DIN rail RS485 to Profibus or Ethernet converter
- Data storage and datalogger on SD card
The MRU SWG 200 continuous emission monitor is a cost-effective, reliable system for emission and combustion monitoring. The monitor is suitable for various industrial sectors, including diesel engines, methane/natural gas boilers, landfill gas/bio-gas CHPs, bagasse and biomass boilers, and many other industries.
The SWG 200 is housed in a IP54 aluminum cabinet with anti-corrosive red structural lacquer and monitored fan ventilation. It uses optimized NDIR technology with improved accuracy and without zero offset. It also features O2 measurement with an electrochemical or a paramagnetic sensor, automatic zeroing using clean ambient air, automatic calibration for up to four gas cylinders, a double stage Peltier gas cooler with two automatic condensate draining pumps, and cold/dry gas sampling with low sample flow volume of only 1 l/min. Various probes are available, depending on the condition of the gases to be analyzed.
