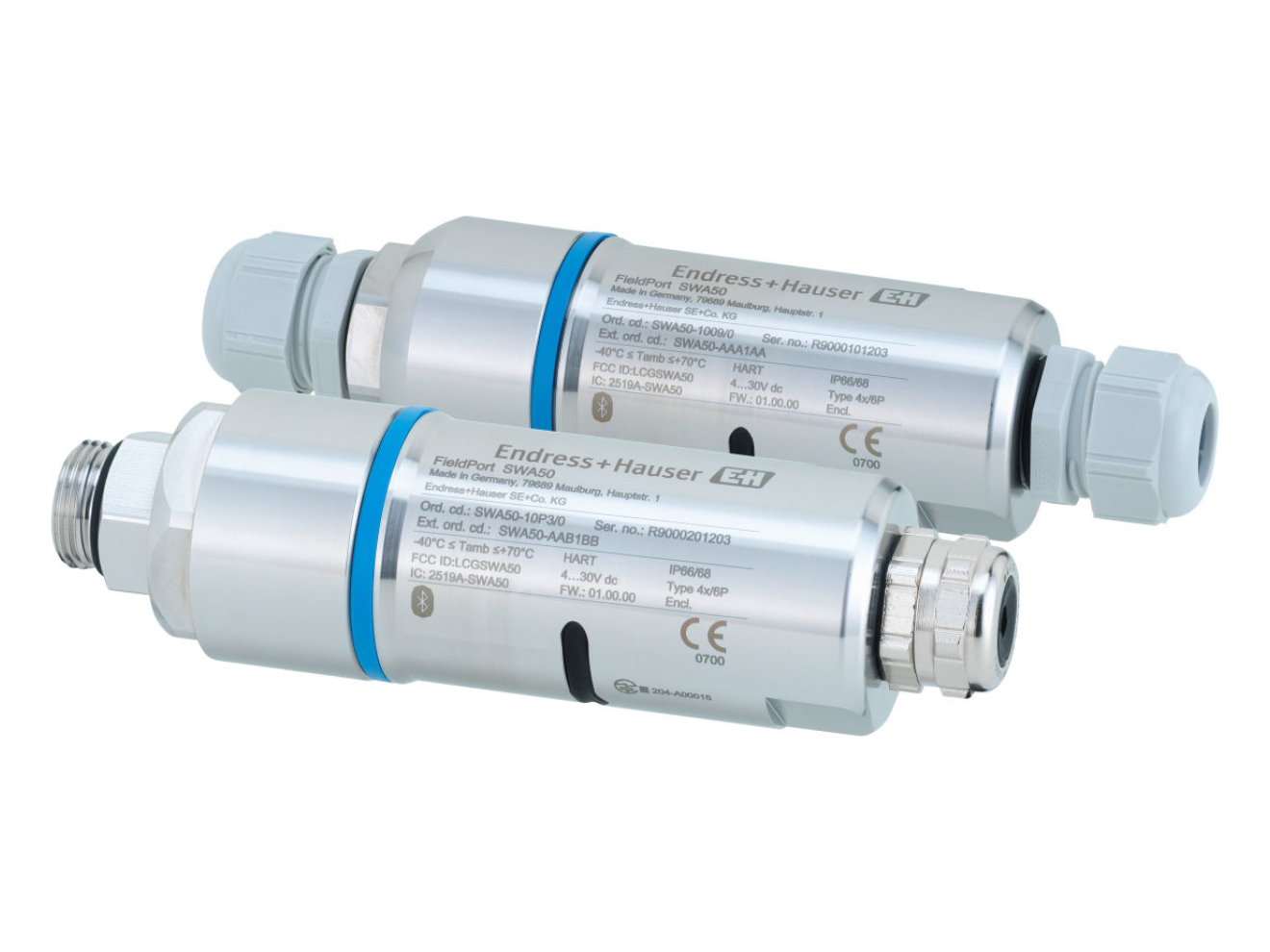

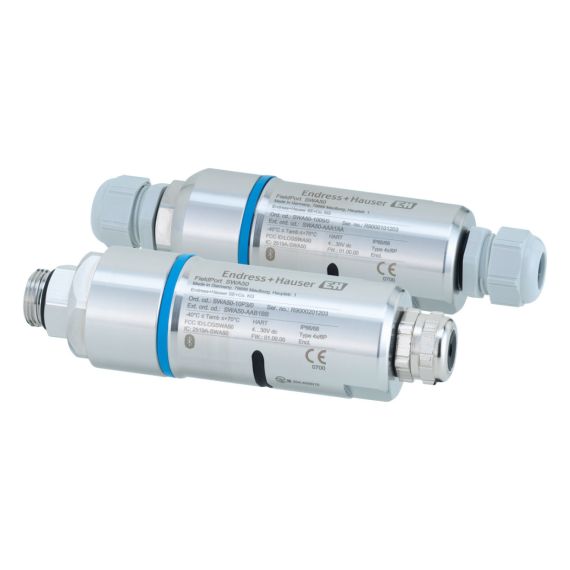

E+H FieldPort SWA50 Wireless Modem

Write a review

$599⁹⁹

In stock

+ −

Delivery

Payment options

Our advantages

— 12 months warranty
— SMS notification
— Return and exchange
— Different payment methods
— Best price

Description
Documents

Features

Certification(s): ATEX, IEC Ex
Point-to-point input
WirelessHART/Bluetooth interface
Operating frequency: 2.4GHz (ISM band)
Transmission range:
- WirelessHART: 200m (656ft) max
- Bluetooth: 40m (131ft) max
Loop-powered 4 to 20mA
- no impact on process signal
Operation method(s):
- DIP switch operation
- Cell phone (via SmartBlue app)
- Field Xpert tablet via Bluetooth/HART-modem (sold separately)
- PC configuration via FieldCare and HART-Modem/WirelessHART
Operating voltage: 24V DC (min. 4 V DC, max. 30 V DC)
- min. 3.6 mA loop current required for start-up

The E+H FieldPort SWA50 Wireless Modem encrypts and converts HART signals into Bluetooth or WirelessHART signals. The E+H SmartBlue app or a Field Xpert tablet¹ can be utilized to adjust settings and generate measured values and status updates of the associated field device from these signals. Connection to HART field devices can also be configured via the Netilion Cloud platform and a FieldEdge unit¹. The durable 316L stainless steel housing allows installation in harsh application environments, and is retrofittable to all 2 and 4-wire HART units in hazardous and non-hazardous areas.
