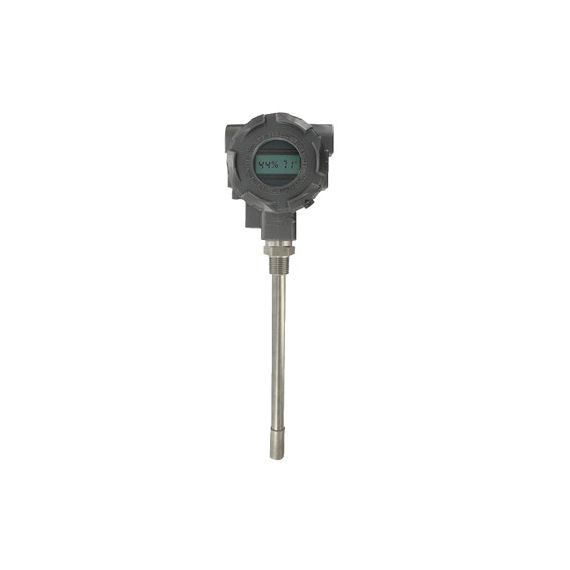

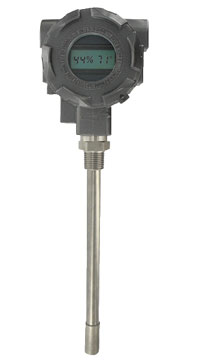

Dwyer HHT Humidity/Temperature Transmitter Intrinsically safe humidity transmitter With LCD display
HHT-IU-LCD
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Column filling
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Display | Sort by Model |
|---|---|---|---|---|
Contact us for a price
|
In stock
|
HHT-EU-LCD
|
Display:
|
Model:
|
|
Contact us for a price
|
In stock
|
HHT-EU
|
Display:
|
Model:
|
|
Contact us for a price
|
In stock
|
HHT-IU-LCD
|
Display:
|
Model:
|
|
Contact us for a price
|
In stock
|
HHT-IU
|
Display:
|
Model:
|
|
Contact us for a price
|
In stock
|
HHT-IT-LCD
|
Display:
|
Model:
|
|
Contact us for a price
|
In stock
|
HHT-IT
|
Display:
|
Model:
|
Features
- Relative Humidity Range: 0 to 100% RH
- Temperature Range: -40 to 140°F (-40 to 60°C)
- Accuracy: ±2% 10-90% RH, ±0.9°F at 72°F (±0.3°C at 25°C)
- Repeatability: ±0.1% typical
- Temperature compensated over entire range
- 4-20 mA output, 2 channels for humidity/temperature models (loop power on RH)
- Screw terminal block electrical connection
- Conduit Connection: 1/2" female NPT
- Capacitance polymer RH sensor
- Solid state band gap temperature sensor
- Aluminum housing
- Optional 2 line alpha numeric display
- CE, FM approved
- NEMA 4X (IP66) rated enclosure
- Approvals:
- HHT-EX: FM Explosion-proof, Class I Div. 1 Group B, C, D, Class II Div. 1 Group E, F, G, Class III Div. 1
- HHT-IX: FM Intrinsically Safe, Class I Div. 1 Group A, B, C, D, Class II Div. 1 Group E, F, G, Class III Div. 1 T4
The Dwyer HHT Hazardous Area Humidity/Temperature Transmitter takes accurate measurements in the harshest of environments. The transmitter is offered in explosion-proof and intrinsically-safe versions depending on the application's requirements. The explosion-proof model is offered with 4 to 20 mA output for humidity only. The intrinsically-safe version is offered with 4 to 20 mA output for humidity and temperature. Both versions have an optional two line alphanumeric display to show the current humidity and temperature.
The Series HHT humidity/temperature transmitter is excellent for offshore HVAC applications, dust and grain applications. Intrinsically safe models require an intrinsically safe barrier.
