Rotronic HygroFlex5-Series Humidity Transmitters
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- 2-wire, 3/4-wire and digital models available
- ABS or aluminum housing
- Use with HygroClip2 probes
- ±0.8%rh / 0.2K accuracy (probe dependent)
- 0.3%rh / .05°C repeatability
- <1%rh / <1°C per year long term stability
- Less than 10 sec response time τ 63
- -50 to 200°C / 0 to 100%RH measurement (probe dependent)
- Output calculated psychrometric parameters
- User scalable output signals
The Rotronic HygroFlex5-series is the latest development in transmitters for humidity, temperature, and dew point. The innovative HygroFlex5-series features the possibility to output all psychrometric calculations as an analog signal.
The HygroFlex5-series is compatible with HygroClip2 probes with integrated AirChip3000 technology, which achieve a degree of accuracy not seen before. Advances in sensor technology and integration allow the Rotronic HygroFlex HF52-, HF53- and HF55- transmitters to provide superb precision and state-of-the-art functionality, taking humidity, temperature and dew point measurements to a whole new level of performance and reliability. AirChip3000 technology compensates humidity and temperature over 30,000 reference points, has a 2000 data point memory, calculates dew/frost point, has sensor auto-diagnostics and automatic correction.

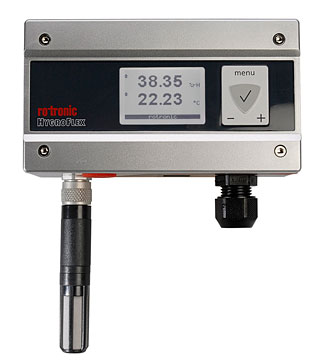

The HygroFlex5-series has an optional backlit graphic display of measured values with trend indicators. Wall or duct mount versions with robust industrial ABS or aluminum housing are available. The Rotronic Hygroflex5-series transmitters have two freely selectable and scalable analog outputs. Units are available as 2-wire (HF52), 3/4-wire (HF53) and digital (HF55) transmitters. The optional digital outputs allow integration on a network via RS485, Ethernet and wireless connections.
Rotronic HygroFlex5-series Applications
The HygroFlex5-series is ideal for all applications where exact measurement of humidity and temperature is of decisive importance.
- Food and pharmaceutical industry
- Printing and paper industry
- Meteorology
- Agriculture
- Climatology
