Jewell Instruments ECV Series eCompass Aluminum enclosure, circular connector RS485
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Output Signal | Sort by Enclosure & Connector |
|---|---|---|---|---|
Contact us for a price
|
In stock
|
ECV-AC-RS232
|
Output Signal:
|
Enclosure & Connector:
|
|
Contact us for a price
|
In stock
|
ECV-AC-RS485
|
Output Signal:
|
Enclosure & Connector:
|
|
Contact us for a price
|
In stock
|
ECV-PJ-RS232
|
Output Signal:
|
Enclosure & Connector:
|
|
Contact us for a price
|
In stock
|
ECV-PJ-RS485
|
Output Signal:
|
Enclosure & Connector:
|
Features
- 3-axis magnetometer
- 3-axis gyroscope
- 3-axis accelerometer
- 2-axis tilt sensor
- ±0.5°/±3.0° rms² heading accuracy
- ±90° pitch/±180° roll heading tilt range
- ±90° pitch/±180° roll range
- 7 to 45Vdc unregulated supply voltage
- -40 to 221°F (-40 to 105°C) operating temperature range
- RS232 or RS485 digital output
- Plastic or aluminum enclosure

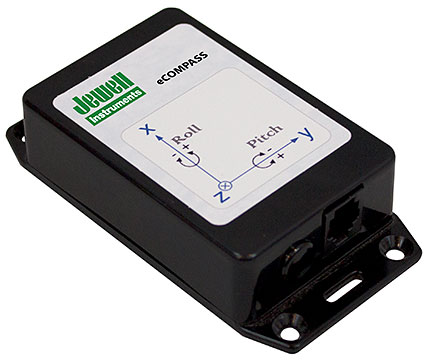

The Jewell Instruments ECV Series eCompass, an enhanced version of the ECG Series, includes a full suite of precision, 3-axis, MEMS sensors and an optional dual-axis electrolytic tilt sensor. A high performance microcontroller orchestrates the fast measurement sequence, sensor calibration adjustments, frame-of-reference translations, trigonometric calculations, and advanced signal processing required to provide accurate heading, pitch, and roll outputs.
Serial outputs from the ECV are compatible with other Jewell eCompass models. These include standard NMEA 0183 HDT, HDG, and XDR sentences, as well as the proprietary HTM ASCII sentence. Advanced binary messages are available at fast data rates for applications requiring additional outputs.
The advanced capabilities of the ECV are supported by updated eCompass PC software that simplifies engineering verification and integration tasks. The software provides the ability to monitor and change compass settings, perform magnetic calibration, capture selected measurement data, and maintain communication and setting logs.
Applications for the ECV Series eCompass include:
- Unmanned vehicles
- Robotics
- Platform stabilization
- Excavation machinery
