Wilcoxon Sensing Technologies 712F High Frequency Integral Cable Accelerometer 8-32 captive screw with 0.047in diameter safety wire hole
712F
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Column filling
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Mounting Thread |
|---|---|---|---|
Contact us for a price
|
In stock
|
712F
|
Mounting Thread:
|
|
Contact us for a price
|
In stock
|
712F-M4
|
Mounting Thread:
|
Features
- Dynamic vibration (IEPE) sensor output
- 100 mV/g sensitivity
- ±10% sensitivity tolerance
- 60g peak acceleration range
- Frequency response:
- ±5%: 9 to 15,000Hz
- ±10%: 6 to 20,000Hz
- ±3 dB: 3 to 25,000Hz
- >45kHz resonance frequency
- 100Ω max output impedance
- ±1,000g vibration limit
- 5,000g peak shock limit
- 8-32 or M4 captive screw with 0.047" diameter safety wire hole

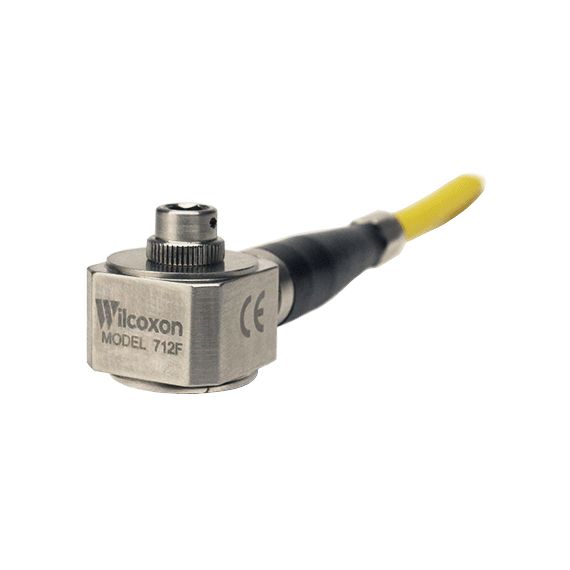

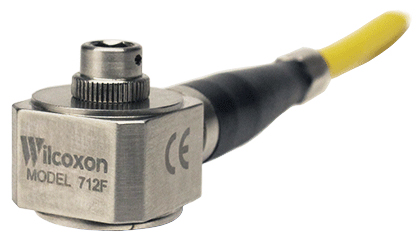

The Wilcoxon Sensing Technologies 712F high frequency integral cable accelerometer is designed for long-term, reliable use. It is corrosion-resistant, hermetically sealed, ground isolated, and constructed with 316L stainless steel.
The 712F offers two possible connector options. The 712F model has a 8-32 captive screw, and the 712F-M4 model has a M4 captive screw. Both models have a 0.047-inch diameter safety wire hole for mounting and J9T2AK, 16-foot, blunt cut integral cabling.
