Wilcoxon Sensing Technologies PCH420V Series Vibration Sensor 2-pin MIL-C-5015 connector Hazardous area certified (Class I, Div 2/Zone 2)
PCH420V-R6-HZ
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Column filling
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Connector | Sort by Certification |
|---|---|---|---|---|
Contact us for a price
|
In stock
|
PCH420V-R6-HZ
|
Connector:
|
Certification:
|
|
Contact us for a price
|
In stock
|
PCH420V-R6
|
Connector:
|
Certification:
|
|
Contact us for a price
|
In stock
|
PCH420V-M12-HZ
|
Connector:
|
Certification:
|
|
Contact us for a price
|
In stock
|
PCH420V-M12
|
Connector:
|
Certification:
|
Features
- 4-20mA and HART 7.0 output
- 0.5 to 5.0in/sec peak full scale velocity output
- Frequency response:
- ±10%: 10 to 1kHz
- ±3 dB: 3.0 to 1.95kHz
- ±5% measurement accuracy
- Single or multi-drop loop installation
- 600Ω max loop resistance
- 500g peak vibration limit
- 5,000g peak shock limit
- Hermetically sealed
- 4-pin M12 or 2-pin MIL-C-5015 connector
- Class I, Div 2/Zone 2 option

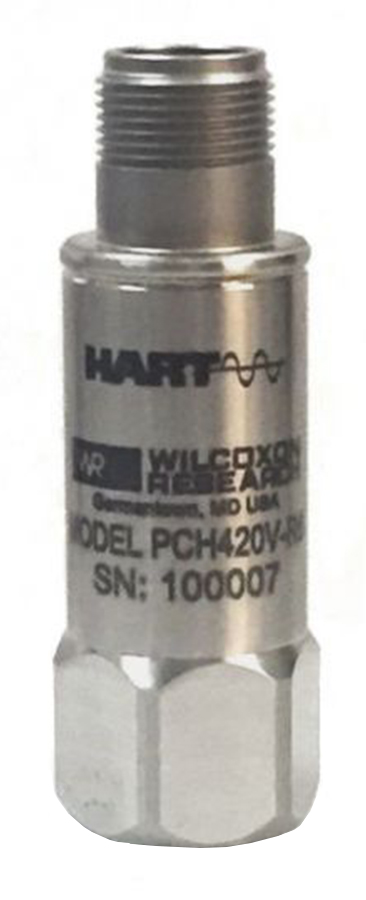

The Wilcoxon Sensing Technologies PCH420V series vibration sensors are velocity transmitters with 4-20mA outputs and the added capability of digital communications using HART protocol. The HART functionality allows user configuration of the sensors, enables multi-drop cable installations, and allows the sensor to communicate directly with a HART-enabled DCS or PLC. The PCH420V can be configured by the user for a number of different full-scale ranges and filter settings and can be connected to existing plant infrastructure.
The PCH420V's case isolated, hermetically sealed design has a 1/4-28 tapped hole for mounting and either a 4-pin M12 or 2-pin MIL-C-2015 connector. The PCH420V is manufactured in an approved ISO 9001 facility.
