AEMC Model 6503 Megohmmeter
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Test voltages of 250 V, 500 V and 1000 V
- Insulation measurements to 200 MΩ and 5000 MΩ
- LED indicates constant voltage output and proper crank speed
- Automatic discharge when measurement is finished
- Auto-ranging/dual scale operation for better sensitivity and easier readings
- Extra rugged cast aluminum case; O-ring sealed against rain, water and dust; aluminum lid
- Designed for harsh environments - marine, mining, heavy-duty field, industrial and military use
- Compact self-contained package; folded crank
- Voltage displayed prior to, during and at the end of test
- Large direct-reading scale

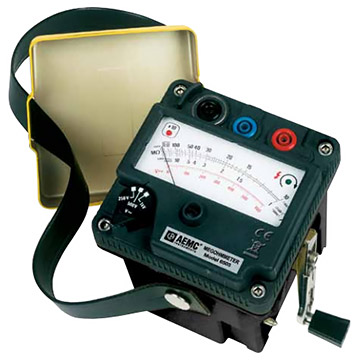

The AEMC Model 6503 megohmmeter is a compact, self-contained, hand-cranked true megohmmeter. This practical and dependable instrument is designed for a broad range of plant and field service applications, such as acceptance testing and preventive maintenance of wiring, cables, switchgear and motors.
The easy hand-cranked operation provides a steady, DC voltage output across the entire range for consistently reliable readings. The Model 6503 has three test voltages, 250 V, 500 V and 1000 V, for insulation resistance testing. Test voltages are generated in full across the entire measurement range. A 600 V test voltage range is provided to perform safety checks to confirm that the sample is fully discharged and not connected to an energized circuit.
The AEMC Model 6503 megohmmeter has a unique auto-ranging feature which expands the scale ten times. When the pointer reaches near the end of scale, the auto-ranging feature activates, returning the pointer to the beginning of the scale with the x10 red LED indicator on. Insulation resistance is indicated with a rugged taut-band meter movement on a logarithmic scale. The indicator scale is large and easy-to-read, and has a direct reading on all ranges. A green LED on the front panel illuminates when the proper crank speed is attained, indicating the presence of the selected output.
The AEMC Model 6503 megohmmeter ships complete with:
- Set of test leads
- Clips
- Test probe
AEMC Model 6503 Megohmmeter Specifications
| Insulation Tests | |
|---|---|
| Test Voltage | 1 to 11 MΩ; 11 to 500 MΩ (250 & 500 V) 10 to 110 MΩ; 110 to 5000 MΩ (1000V) |
| Short Circuit Current | 5mA (max) |
| Accuracy | 2% of Scale Length |
| Automatic Discharge | 8 s/µF |
| Charging Time | 0.5 s/µF |
| Resistance Tests | |
|---|---|
| Discharging Time | 8 s/µF |
| Voltage Tests/Safety Check | |
|---|---|
| Voltage Range | 0 to 600 VAC |
| Frequency | 45 to 450 Hz |
| Accuracy | 3% of Scale |
| Scale | Direct reading on MΩ and voltage scales; 3" (76mm), black on white |
