Extech 380395 / 380396 Digital High Voltage Insulation Tester 220V European plug Not included
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Power Supply | Sort by NIST Calibration Certificate |
|---|---|---|---|---|
Contact us for a price
|
In stock
|
380395
|
Power Supply:
|
NIST Calibration Certificate:
|
|
Contact us for a price
|
In stock
|
380395-NIST
|
Power Supply:
|
NIST Calibration Certificate:
|
|
Contact us for a price
|
In stock
|
380396
|
Power Supply:
|
NIST Calibration Certificate:
|
|
Contact us for a price
|
In stock
|
380396-NIST
|
Power Supply:
|
NIST Calibration Certificate:
|
Features
- Test Voltage: 500V, 1000V, 2500V, 5000V
- Insulation resistance: 0 to 6MΩ, 0 to 60MΩ, 0 to 600MΩ, 0 to 6GΩ, 0 to 60GΩ with ±2.5% of reading accuracy
- AC/DC voltage: 0 to 600V with ±1% of reading accuracy
- Resistance: 0 to 600Ω with ±1.5% of reading accuracy
- Continuity: 50Ω

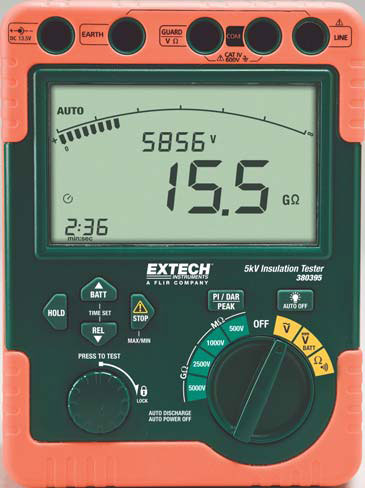

The Extech 380395 / 380396 Digital High Voltage Insulation Tester tests voltages of 500V, 1000V, 2500V and 5000V and measures insulation resistance to 60GΩ. The Extech 380395 has a large 6000 count display with bargraph and backlight. Choose between 120V or 220V European plug for power supply.
The Extech 380395 / 380396 Digital High Voltage Insulation Tester has polarization index measurement (PI) and dielectric absorption ratio measurement (DAR). The Extech 380395 / 380396 can take AC/DC voltage measurement from 0 to 600V with max/min, peak and relative functions and there is a 1 to 15 minute timer function for IR measurements.
Other features of the Extech 380395 / 380396 Digital High Voltage Insulation Tester include resistance measurement, autoranging, indication of output voltage and discharge voltage, auto-discharge function, voltage output warning function, auto power off and battery check.
