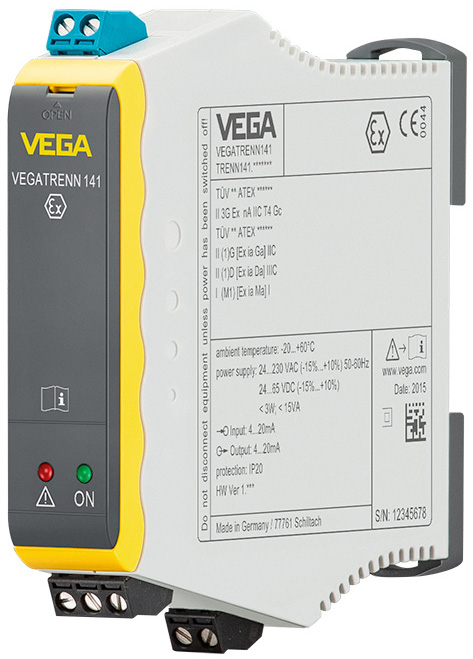

VEGA VEGATRENN 141 Single Channel Separator

Write a review

$313³⁰

In stock

+ −

Delivery

Payment options

Our advantages

— 12 months warranty
— SMS notification
— Return and exchange
— Different payment methods
— Best price

Description
Documents

Features

Operating voltage:
- Nominal voltage AC 24 to 230V (-15%, +10%) 50/60Hz
- Nominal voltage DC 24 to 65V (-15%, +10%)
4 to 20mA/HART (5 x HART multidrop) sensor
Active input (sensor power supply by VEGATRENN 141)
21 to 16.5VDC at 4 to 20mA terminal voltage
24VDC (+/- 1V) off-load voltage
<26mA short-circuit current
<50mV RMS residual ripple
IP20 protection rating
Universal Ex-separator for all 4 to 20mA/HART sensors (use in Ex area is optional)
Complete HART transmissibility enables access to the sensor settings
Simple mounting through carrier rail and detachable, coded terminals
Universal all-current power supply unit for supplying the device and the connected sensor

The VEGA VEGATRENN 141 single channel separator is used for galvanic separation, intrinsically safe power supply as well as the signal transmission of Ex approved 4 to 20mA/HART sensors in hazardous areas. The separate voltage supply ensures a reliable measured value transmission.

The VEGATRENN 141 is used in all industries, also with Ex applications. It is suitable for bidirectional transmission of HART signals. The HART signal can be tapped via the front-mounted HART communication sockets or the terminals. The total transmissibility of HART signals allows unrestricted access to the sensor settings.
