Gizmo Engineering LC3 Wall Mount Level Controller Polypropylene 10 inches
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Length | Sort by Material of Pipe and Float |
|---|---|---|---|---|
$53950
|
In stock
|
LC3-PP2-10
|
Length:
|
Material of Pipe and Float:
|
|
$55510
|
In stock
|
LC3-PP2-20
|
Length:
|
Material of Pipe and Float:
|
|
$57200
|
In stock
|
LC3-PP2-30
|
Length:
|
Material of Pipe and Float:
|
|
$58760
|
In stock
|
LC3-PP2-40
|
Length:
|
Material of Pipe and Float:
|
|
$60320
|
In stock
|
LC3-PP2-50
|
Length:
|
Material of Pipe and Float:
|
|
$53300
|
In stock
|
LC3-PP2-06
|
Length:
|
Material of Pipe and Float:
|
|
$62010
|
In stock
|
LC3-PP2-60
|
Length:
|
Material of Pipe and Float:
|
|
$53300
|
In stock
|
LC3-PP2-08
|
Length:
|
Material of Pipe and Float:
|
Features
- Polypropylene wetted materials
- Power consumption: 50mA
- Standard depth of high float: 8in
- Threaded plug: 2in NPT or NPS
- Relay load: 15A@120V or 10A@250V
- 103dB at 2ft audio alarm volume
- IP65, NEMA 4X protection level

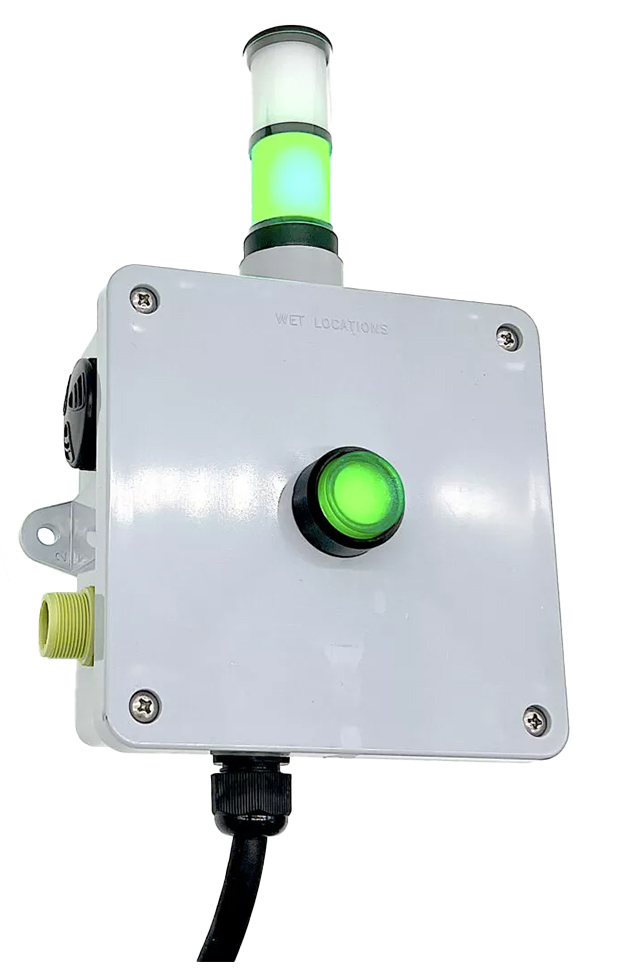

The Gizmo Engineering LC3 is a wall mount level controller designed to automatically cycle a user's pump or solenoid to keep a tank filled, or empty depending on the user's settings. The controller turns on a pump to fill the tank and can turn off the pump when the the liquid level rises to the high level float. The cycle repeats itself automatically as needed to properly maintain the identified liquid level. To switch between pump modes, simply remove a circuit board jumper. There are emergency level alarms included which set off when there is a problem with the liquid levels deviating from the control floats.
The level controller has an electronic box mount that allows for mounting on a wall. The adjustable level probes can adjust to the depth of the high and low float with the thumb screws, with at least 6 inches of adjustability in each pipe. There is a snooze alarm option and the level controllers can be mounted anywhere from open tanks to drums. These controllers are ideal for abusive environments, including wet and corrosive environments.
