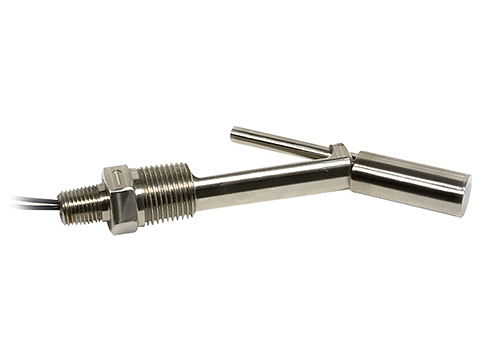

APG FS-500 Horizontal Float Switch Standard -40º to 368ºF (-40 to 187°C) 1/2" UNC bulkhead 48 inches

CODE:

Write a review

$165¹⁰

In stock

Operating Temperature:

Wire Length:

Fitting Types:

+ −

Delivery

Payment options

Our advantages

— 12 months warranty
— SMS notification
— Return and exchange
— Different payment methods
— Best price

Options
Description
Documents

Column filling

Sort by Price	Sort by Availability	Sort by CODE	Sort by Operating Temperature	Sort by Wire Length	Sort by Fitting Types
$165¹⁰	In stock + −	FS-500-S-P58-24-24	Operating Temperature: Standard -40º to 368ºF (-40 to 187°C)	Wire Length: 24 inches	Fitting Types: 1/2" UNC bulkhead
$165¹⁰	In stock + −	FS-500-S-P58-48-48	Operating Temperature: Standard -40º to 368ºF (-40 to 187°C)	Wire Length: 48 inches	Fitting Types: 1/2" UNC bulkhead
$163⁸⁰	In stock + −	FS-500-S-P0P1-36-36	Operating Temperature: Standard -40º to 368ºF (-40 to 187°C)	Wire Length: 36 inches	Fitting Types: 1/4" NPTM inside

Horizontal mounting
0.6 float specific gravity
-40 to 368°F (-40 to 187°C) standard temperature range
-40 to 500°F (-40 to 260°C) high temperature range
100W max switch capacity (resistive load only)
Up to 120 VDC, 240 VAC voltage rating

The APG FS-500 horizontal float switch features all 316L stainless steel wetted materials, user-reversible logic function, and NSF 169 and CSA approvals. Additionally, the FS-500 has options for standard or high operating temperature ranges, and three fitting configurations. The FS-500 with bulkhead mounting is rated for up to 100 psi (6.9 bar), while the switch with NPT mountings is rated for up to 300 psi (20.7 bar). The versatility of the FS-500 switch makes it ideal for OEM, water and wastewater, chemical, and specialty food equipment applications.
