E+H Micropilot FMR10B Radar Level Sensor
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Accuracy: +/- 5mm (0.2in)
- Process temperature: -40 to 60°C (-40 to 140°F)
- Process pressure/overpressure limit: -1 to 3bar (-14.5 to 43psi)
- Measurement distance: 10m (32.8ft) max
- Main wetted parts: PVDF, PBT/PC
- Communication: 2-wire (4 to 20mA)
- Bluetooth operation optional
- Frequency: W-Band (80GHz)
- LED Status indicator
- Process Connection:
- Cable entry: 1in G, 1in NPT
- Antenna head: 1-1/2in G, 1-1/2in NPT
- Protection rating: IP66/68 / NEMA Type 4X/6P

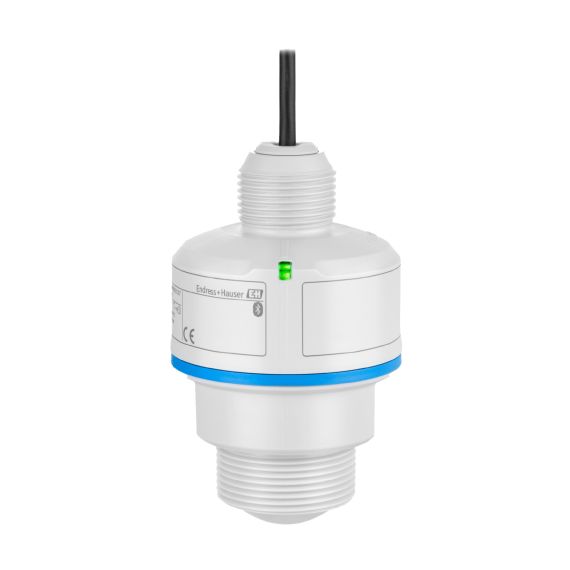

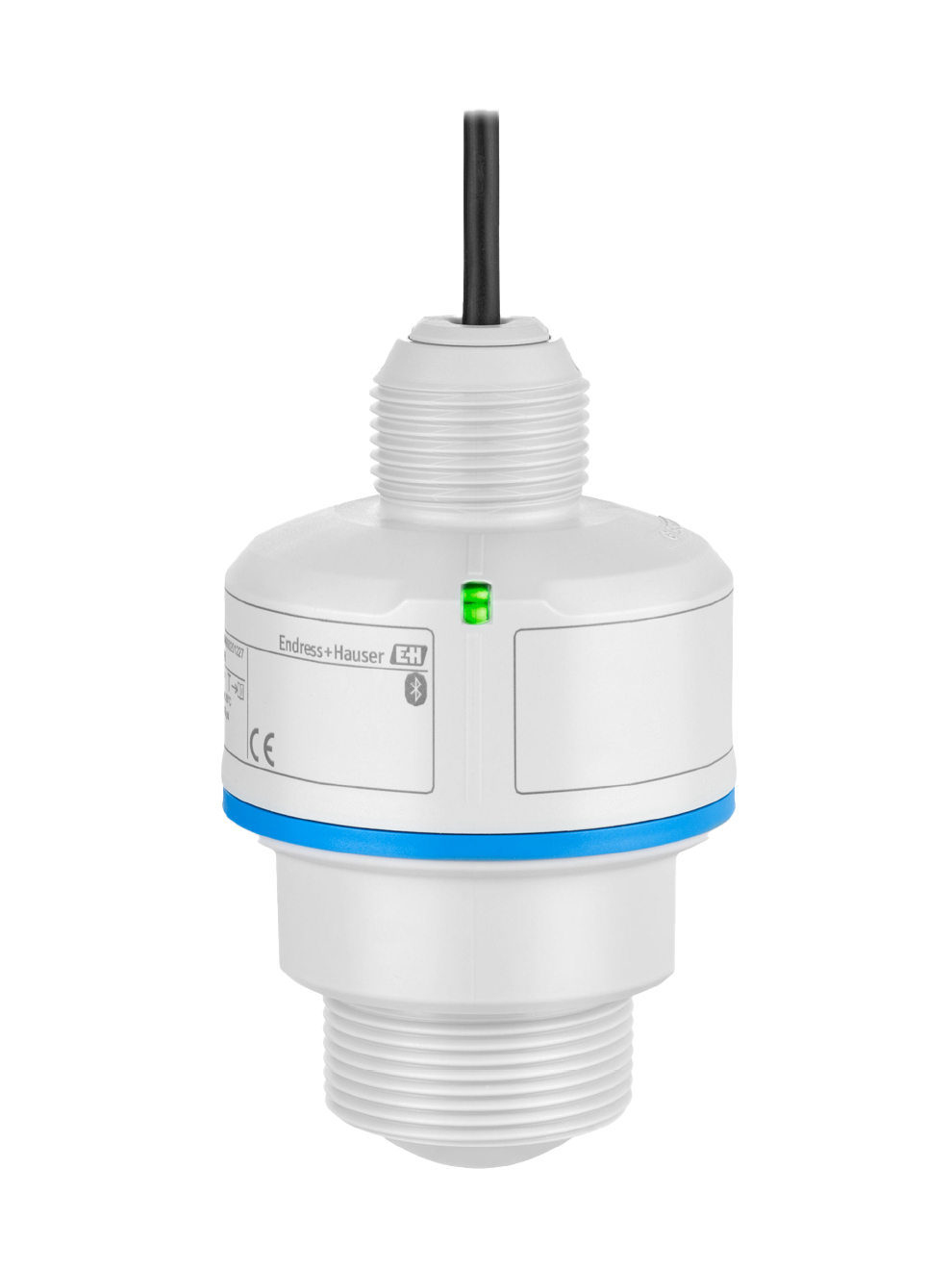

The E+H Micropilot FMR10B Radar Level Sensor is a compact radar sensor designed for monitorization of liquids and solids in waste, wastewater, and various other utilities and industries. The Micropilot FMR10B provides continuous non-contact level measurement with 80GHz technology, and Bluetooth enabled operation via the SmartBlue app. Each unit comes with a standard-issued cable of 10m (32ft). Process connections for the cable entry and antenna head are offered in G or NPT thread. Installation of the sensor is quick and easy to complete with guided setup.
Applications:
- Open basins
- River monitoring
- Storage tanks
- Silos
- Stockpiles
