E+H Micropilot FMR20B Radar Level Sensor
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Features
- Accuracy: +/- 2mm (0.08in)
- Process temperature: -40 to 80°C (-40 to 176°F)
- Process pressure/overpressure limit: -1 to 3bar (-14.5 to 43psi)
- Measurement distance:
- 40mm (1-1/2in): 20m (65.6ft) max
- 80mm (3in): 30m (98.4ft) max
- Main wetted parts: PVDF, PBT/PC
- Communication: 2-wire (HART, 4 to 20mA)
- Bluetooth operation optional
- Heartbeat verification
- Frequency: W-Band (80GHz)
- LED Status indicator
- Process Connection:
- Cable entry:
- Thread: 1in G, 1in NPT
- Flange: UNI 2, 3, 4in
- Antenna head:
- Thread: 1-1/2in G, 1-1/2in NPT
- Flange: UNI slip-on 3, 4, 6in
- Cable entry:
- Protection rating: IP66/68 / NEMA Type 4X/6P
- Overfill protection WHG
- Drinking water approval: NSF/ANSI 61
- Marine approval(s): ABS, LR, BV, DNV
- Hygienic approval(s):
- EU Food Contact Material (EC) 1935/2004
- US Food Contact Material FDA CFR 21

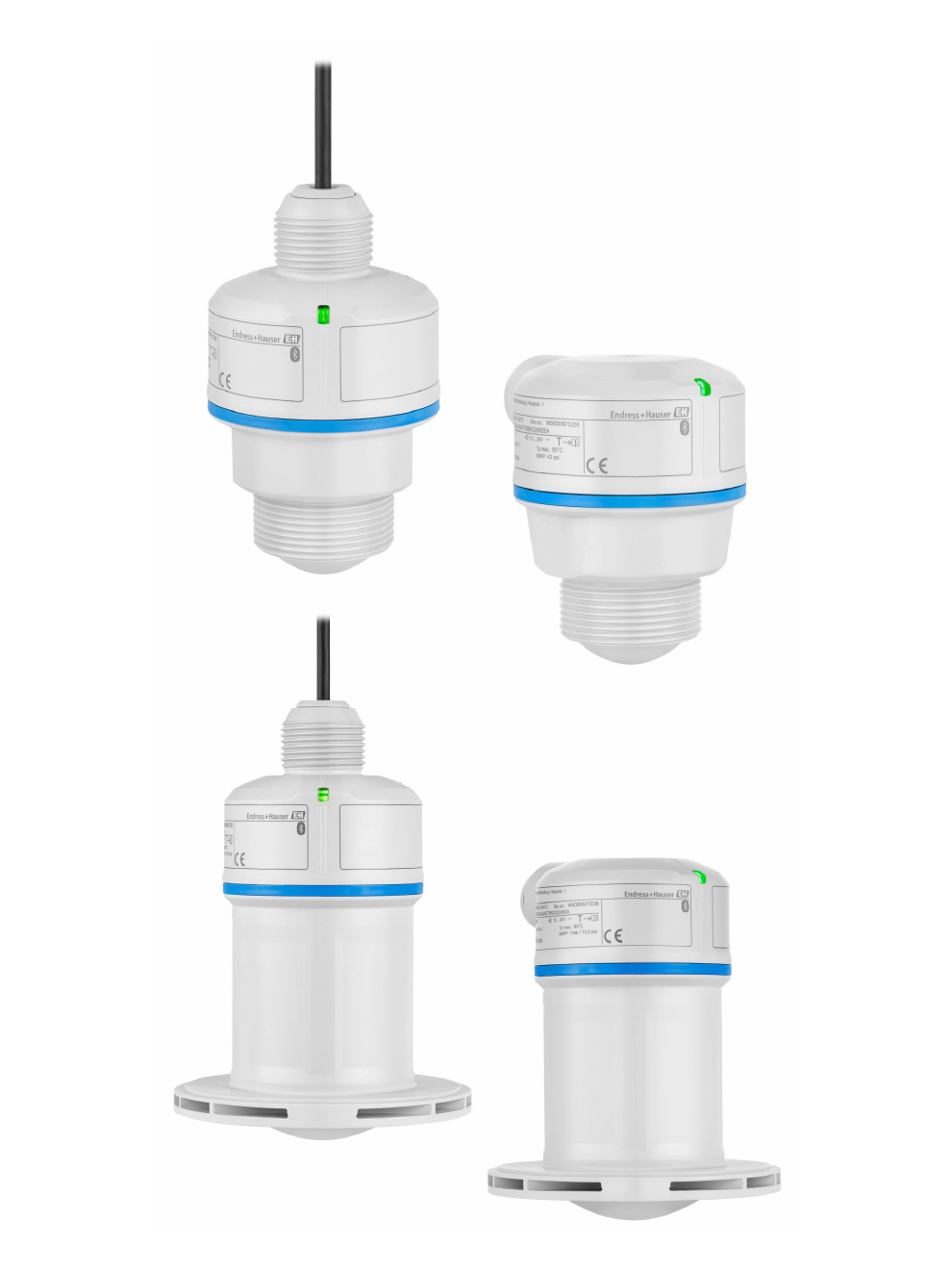

The E+H Micropilot FMR20B Radar Level Sensor is a compact radar sensor designed for monitorization of liquids and solids in waste, wastewater, and various other utilities and industries. The Micropilot FMR20B provides continuous non-contact level measurement with 80GHz technology, and Bluetooth enabled operation via the SmartBlue app. Units come with a 2-wire output (HART, 4 to 20mA), with optional heartbeat verification. Cable lengths are available up to 30m (98ft), with additional lengths available upon request. Process connections for the cable entry and antenna head are offered in G or NPT thread (optional UNI flange). Installation of the sensor is quick and easy to complete with guided setup, with extensive connection accessories available.
Applications:
- Open basins
- River monitoring
- Storage tanks
- Silos
- Stockpiles
- Pneumatic conveying
- Open channel flow
- Pump station / lift station
- Sewer management
